Stainless Steel Pass Through Window

Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of stainless steel pass through window in China. With abundant experience, we warmly welcome you to wholesale advanced stainless steel pass through window from our factory. For price consultation, contact us.

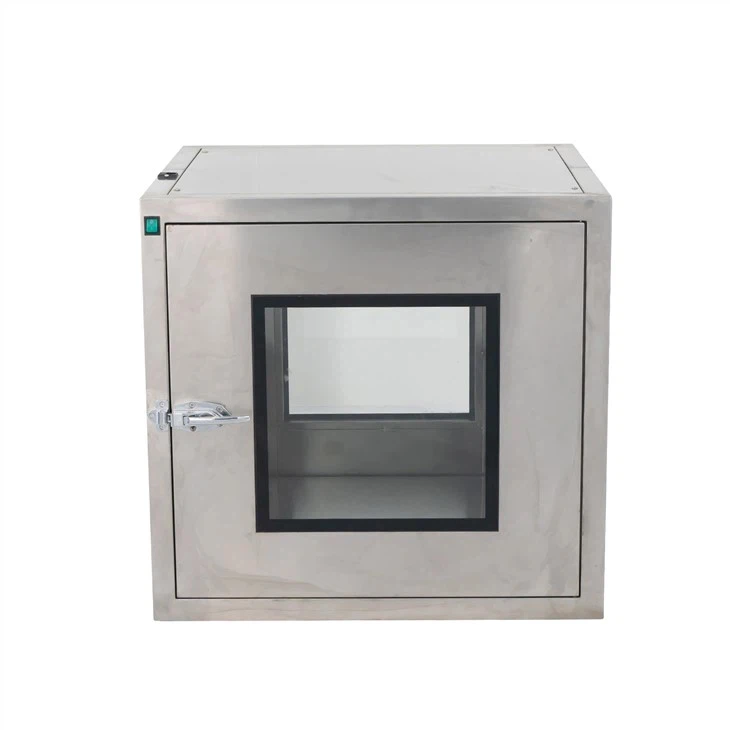

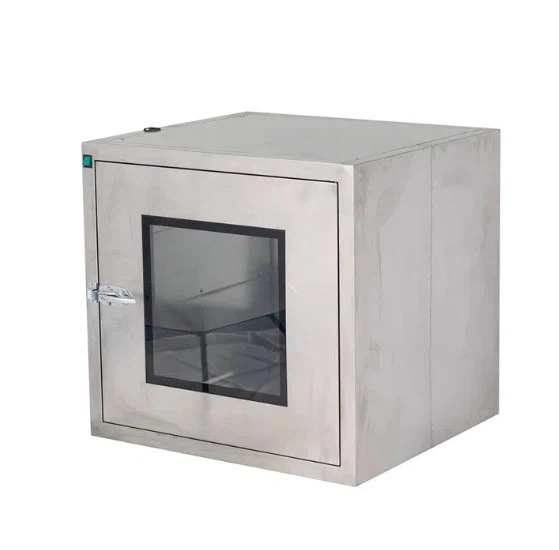

Stainless Steel Pass Through Window usually adopts stainless steel plate as the shell, flat and clean and beautiful. In addition there are double door interlock function, set electronic or mechanical chain device, and equipped with ultraviolet germicidal lamp, so as to effectively prevent cross-contamination, better assist the normal operation of work in the clean room.

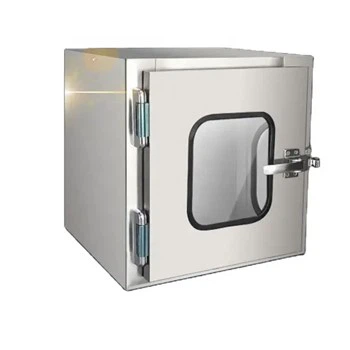

he Pass through box is a clean room auxiliary equipment, its function is to purify the goods pass the buffer between indoor and outdoor clean area to prevent items due to the pass to open the door and destroyed the clean room air and chamber pressure, more can reduce the operating personnel move to prevent the entry of the dust of the outer region, the stability of the clean room.
304 stainless steel mechanical interlock transfer window, cold-rolled plate spray interlocking pass the window Air shower pass window

Cleanliness requirements : Class B;Double-layer shell inside and outside, the arc design in the inner circumference, to ensure a seamless connection line;Vertical laminar flow design, air flow direction adopts the upper and lower return mode, the bottom is made of SUS304 stainless;steel cold-rolled plate punching design, with reinforcing rib;With G4 pre filter, H14 HEPA filter;The wind speed is around 0.38-0.57m/s after HEPA filter; (tested at 150mm below the airflow equalizer);Display filter pressure gauge (range 0-500Pa), accuracy ± 5Pa;With button of fan start-stop, electronic door interlock, UV lamp with separate switch;With inspection port at bottom to convenient to fan mantain;The noise is during normal operation <65db.



Transfer window can be divided into three categories: 1. electronic chain transfer window 2. mechanical chain transfer window 3. self-cleaning transfer window,According to the working principle, the transfer window can be divided into air shower type transfer window, common transfer window and laminar flow transfer window. SNYLI can make various types of transfer windows according to the actual requirements.

Optional accessories: intercom, sterilization lamp and other related functional accessories.

Generally speaking, the management method of the transfer window is regulated according to the cleanliness level of the relatively higher level clean area connected with it, in order to ensure the effective work of the transfer window.

Materials must be transported in and out of the clean area through special channels.

Materials and wastes that are very easy to cause pollution need to be transported from the special channel to the designated place.

After the end of the material in and out, the hygiene of the area through which the material passes should be cleaned up immediately, the transfer window should be closed, and the sterilization and poisoning work should be done.

Stainless Steel Pass Through Window are suitable for general transportation, during transportation, prevent rain and snow from attacking, so as not to cause damage and rust.

Pass window should be stored in the temperature of -10 ℃ ~ +40 ℃, relative humidity is not more than 80%, no acid and alkali and other corrosive gases in the warehouse.

When opening the box, the work should be civilized, no rough, brutal operation, so as not to cause personal injury.

The important role of the Stainless Steel Pass Through Window is: to block the air flow to the clean room and purify the materials entering the clean room when passing the materials, and to reduce the pollution of the clean environment caused by the dust brought into the clean room by the materials as much as possible.

The practical range of transfer window provided by SNYLI is wide, mainly used in semiconductor, liquid crystal display, photoelectric electronics, precision instruments, chemical, biological medicine, hospital, food, research institute, university, automobile, painting, printing and other fields.



The long service life Stainless Steel Pass Through Window is widely used in microtechnology, biological laboratory, pharmaceutical factory, hospital, food processing industry, LCD electronics factory and other places that require air purification.

Can design and customize products with small batch orders according to the customer's drawings.

Propose the best solution according to the customer's product, and adopt the best production plan to reduce costs.

We have many years of production experience, if there is a conflict between product design and actual production, we can propose the best modification to meet the actual use of the product.

First-class product quality and perfect after-sales service.

Factory Outlet.
