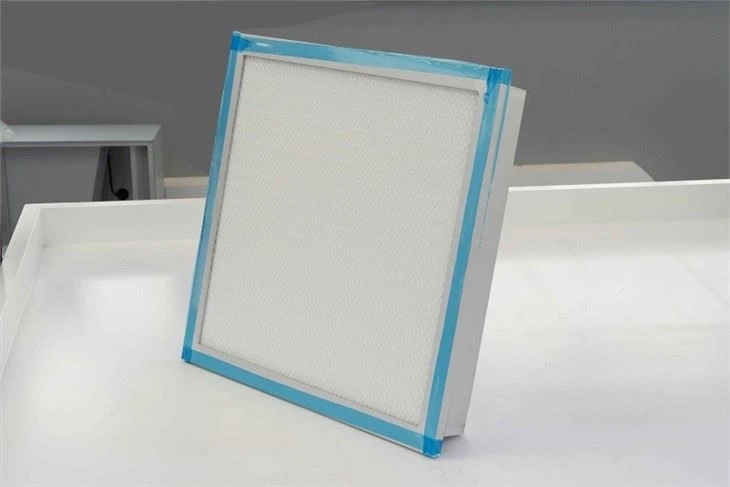

Gel Sealing HEPA Filters

Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of gel sealing hepa filters in China. With abundant experience, we warmly welcome you to wholesale advanced gel sealing hepa filters from our factory. For price consultation, contact us.



Gel seal HEPA filter is a high-efficiency air filtration device that utilizes a unique gel seal technology (usually using polymer gel or special liquid sealing material) to ensure a completely leak-free seal between the filter and the mounting frame.

Frame	Anodized aluminum profile
Protective net	Double-sided
Std. EN1822:2009	H13 / H14 / U15
Efficiency	99.99%,99.999% at 0.3μm, 99.9995% at 0.12μm (DOP/PSL/PAO Counting method)
Sealant	Urethane gel sealant
Filter media	Ultrafine Glass Fibre
Separator	Hot melt
Maximum temperature	80℃
Maximum relative humidity	100%RH (non-condensing condition)
Gasket	EPDM
Customized size	Available
Style	Top gel seal, side gel seal
Tested one by one before leaving the factory and can be delivered only after passing the test. Reliable quality, stable performance, can be customised with non-standard size.

Gel Sealing HEPA Filters core advantages include: 1) airtightness far exceeds the traditional mechanical sealing method, effectively eliminating the risk of leakage; 2) easy installation and sealing can be easily completed through the automatic filling of the liquid tank; 3) excellent anti-vibration and anti-shock performance, and can still maintain sealing stability during vibration of the equipment or pressure fluctuations; 4) filtration efficiency of more than H13 level (filtration efficiency of 0.3μm particles ≥ 99.99%).

Widely used in biosafety laboratories, electronic cleanrooms, pharmaceutical workshops and other areas with extremely high requirements for air cleanliness, especially suitable for BIBO (ready to use out of the box) installation or frequent replacement of filters.

Dimensions(mm)	Gel Seal Method	Rated Air flow(m³/h)	Initial Resistance(Pa)
			H14	U15
412*412*93	Side gel seal	500	240	260
631*631*93		1200	240	260
758*631*93		1500	240	260
1026*631*93		2000	240	260
610*305*95(85+15)	Top gel seal	500	240	260
610*610*95(85+15)		1200	240	260
762*610*95(85+15)		1500	240	260
915*610*95(85+15)		1800	240	260

1. Excellent sealing performance

Gel Sealing HEPA Filters use polymer gel as the liquid tank filling medium to achieve true zero-leakage sealing, with excellent airtight performance, effectively preventing the risk of bypass of unfiltered air.

2. Highly efficient and stable filtration capacity

Gel seal HEPA filter meets the HEPA standard of H13 or above, with a filtration efficiency of ≥99.99% for 0.3μm particles, and some models can reach the U15 level (99.9995% or above), and can still maintain stable filtration performance under high humidity, airflow fluctuations, or long-term operating conditions.

3. Convenient installation and anti-vibration design

Gel seal filter adopts liquid tank auto-filling sealing technology, which can be quickly disassembled and assembled without complex leveling or strong pressure during installation; the unique flexible sealing structure can absorb the impact brought by vibration of the equipment or changes in wind pressure, avoiding seal failure caused by vibration, especially suitable for biological safety cabinets, clean rooms and other scenarios with stringent requirements on sealing reliability.



1. Biosafety laboratories and medical decontamination field

Gel seal HEPA filters are widely used in P3/P4 biosafety laboratories, sterile operating rooms, ICU wards and pharmaceutical workshops, where their excellent sealing and high efficiency filtration capabilities can effectively block pathogenic microorganisms and ensure environmental safety and cleanliness.

2. Electronics and semiconductor clean room

In the chip manufacturing, LCD panel production and other electronic industries, Gel Sealing HEPA Filters is used in FFU (Fan Filter Unit) or clean air-conditioning end, to control fine dust and particles, and ensure that the production environment of precision components meets the ISO Class 1-5 cleanliness standards.

3. High-end food and cosmetic production workshop

Gel Seal HEPA Filter is commonly used in aseptic food packaging, dairy processing and cosmetic production environments, effectively intercepting microorganisms and suspended particles to ensure that the product is free of contamination, in line with GMP (Good Manufacturing Practices) and HACCP (Hazard Analysis and Critical Control Points) of the stringent health standards.

SNYLI has a complete and scientific quality management system and strong technical force, and has obtained a number of patents through independent research and development. Our products have been widely used in the electronics industry, bio-pharmaceutical industry, crystal material industry, medical institutions, biological laboratories and other major industries in clean rooms and local 100-level applications, and have been widely recognized by the industry.

SNYLI has advanced production and monitoring equipment, advanced HEPA&ULPA filter leak detection test bench, perfect testing procedures, strict quality assurance system and management system, and each HEPA/ULPA filter manufactured by SNYLI is strictly complied with the EN1822:2009 standard carries out the automatic scanning test, so that customers can rest assured!

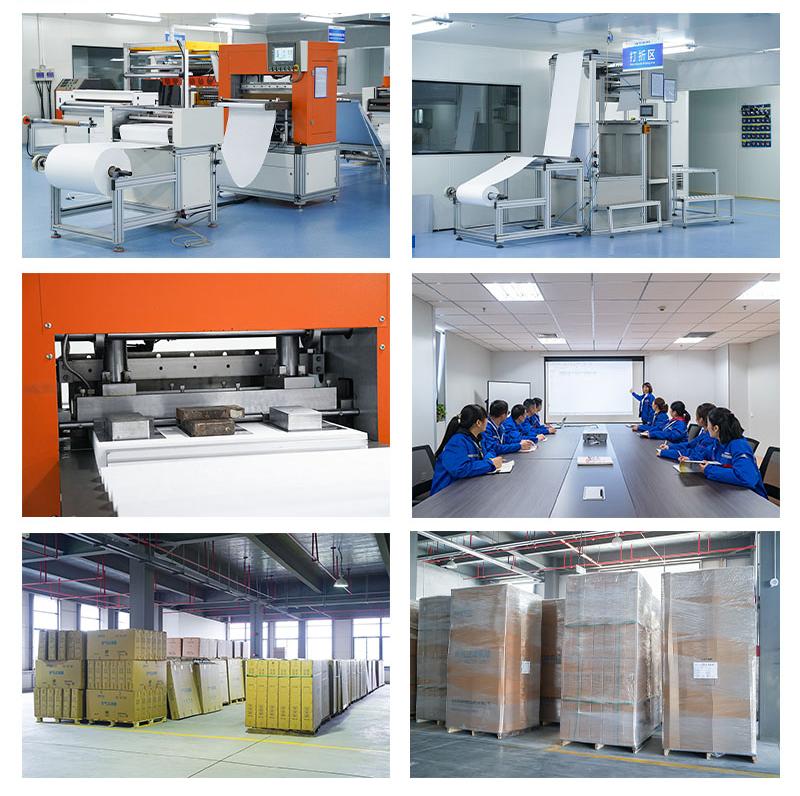

SNYLI factory is located in Liaocheng City, Shandong Province, China, with several independent clean production workshops, including FFU workshop, primary filter workshop, bag filter workshop, HEPA filter workshop and so on.

Professional technical team, independent warehouse and perfect service make SNYLI's popularity in the air filtration industry increasing.

1. Is it all right to make customer's own brand name?

Yes, we offer OEM services. We have partnerships with many brands and provide OEM services for them.

2. Are you a manufactuer or trading company?

We are the manufacturer and our brand is SNYLI. Our products can meet the GMP requirements of the pharmaceutical industry or the ISO Class 5 requirements of clean rooms.

3. Can you do the design for us?

Yes, we have professional technical staff, can provide you with product drawings.

4. How can I get a sample to check your quality?

Just contact us, after confirm all the product specifications, you can get sample after a few days.

5. What is your terms of delivery?

EXW, FOB, CIF, etc.

6. Where is your loading port?

Usually Qingdao Port / Shanghai Port
