Panel Activated Carbon Filter
Panel Activated Carbon Filter It is an air purification filter material made by attaching powdery catalytic activated carbon with strong adsorption performance to polyurethane foam carrier by using polymer bonding material. Has good adsorption properties.
Product Introduction
Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of panel activated carbon filter in China. With abundant experience, we warmly welcome you to wholesale advanced panel activated carbon filter from our factory. For price consultation, contact us.
Products Features
Panel Activated Carbon Filter
- Frame: Die cut cardboard / Aluminum / Galvanized steel
- Media: Activated CarbonSynthetic fiber
- Gasket: Neoprene ( available on request)
- Odor removal rate: 60-70%
- Max.Constant Temperature: 80℃ (170℉)
- Recommended Final Resistance: 150Pa ( 0.6" W.G)
- Flammability: UL Classified
- Relative Humidity: 100%
Products Parameter
|
Nominal size W×H×D ( in.) |
Actual size W×H×D ( mm) |
Filter Rating (EN779:2012) |
Air flow (m³/h) |
Initial P.D. (Pa) |
Recommended Final P.D.(Pa) |
|
24x24x2 |
595x595x45 |
G4 |
3600 |
70 |
≤ 200 |
|
12x24x2 |
290x595x45 |
1800 |
70 |
||
|
24x24x4 |
595x595x95 |
3600 |
45 |
||
|
12x24x4 |
290x595x95 |
1800 |
45 |
||
|
20x24x2 |
495x595x45 |
3000 |
70 |
||
|
20x20x2 |
495x495x45 |
2500 |
70 |
||
|
12x20x2 |
290x495x45 |
1500 |
70 |
||
|
20x24x4 |
495x595x45 |
3000 |
45 |
||
|
20x20x4 |
495x495x95 |
2500 |
45 |
||
|
12x20x4 |
290x495x45 |
1500 |
45 |
Products Application
From commercial such as offices, laboratory, food processing, pharmacy to household usage such as kitchen, washrooms etc, where enviornment obtain strange odors, gases or acid vapors.
Products Advantage
• Panel Activated Carbon Filter Excellent gas phase filter for intermittent gas applications
• Excellent filter to determine if carbon filters will remove the odor
• Effective gas phase filtration for common, compact applications
• Fits all standard front access frame & side access housings
• Low pressure drop
• Disposable, easy to use, low service cost

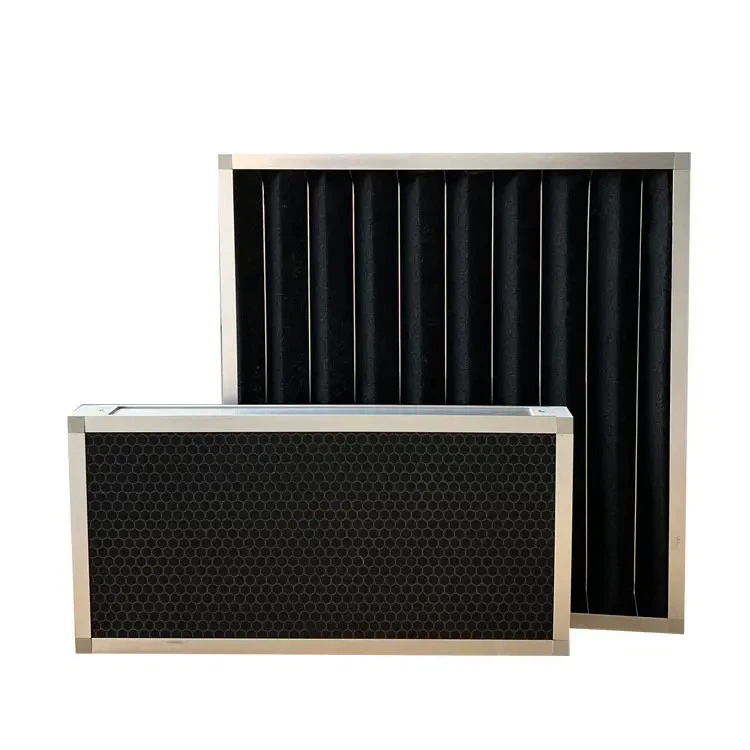

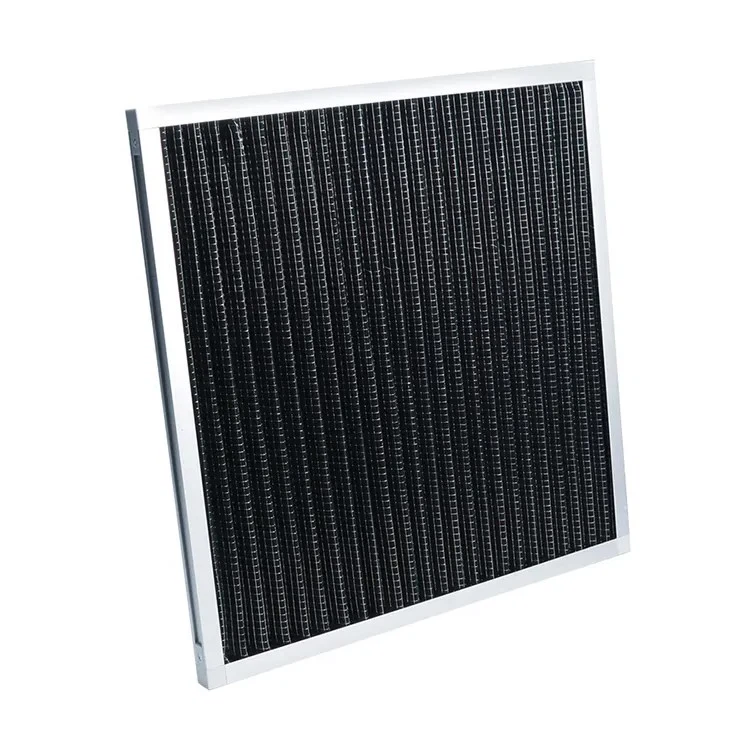

Products Photos
