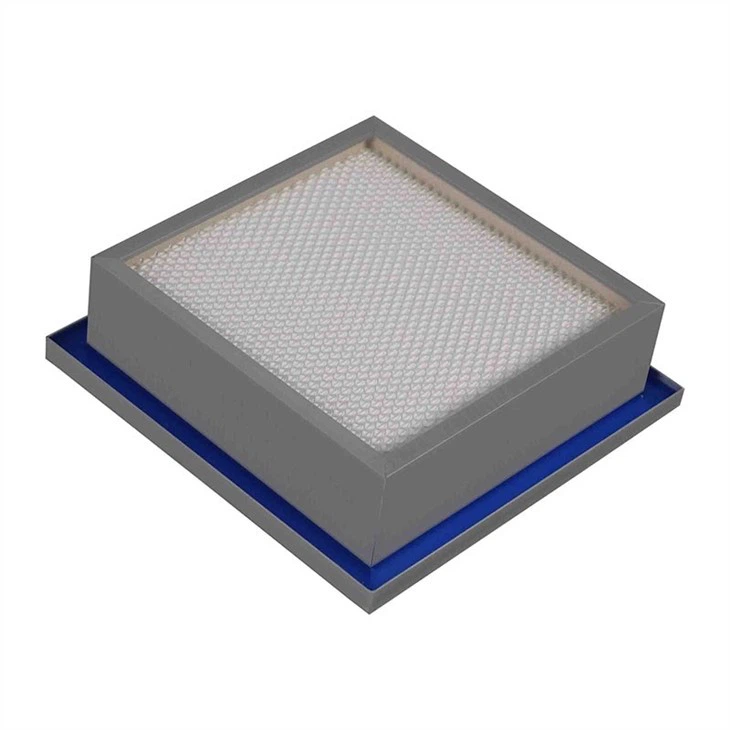

Mini Pleat Gel Type HEPA Filters
Mini Pleat Gel Type HEPA Filters have a gel channel into which a corresponding knife edge fits. To maintain the alignment of the knife edge, it is best to employ guides and spacers. And they are usually developed specifically for class 10,000 clean rooms.
Product Introduction
Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of mini pleat gel type hepa filters in China. With abundant experience, we warmly welcome you to wholesale advanced mini pleat gel type hepa filters from our factory. For price consultation, contact us.
Products Description
Mini Pleat Gel Type HEPA Filters are equipped with a gel channel into which a corresponding knife edge seats, and the gel channel can create an tight, water tight barrier.
Mini pleat gel type HEPA Filters are a great substitute for more often used filters with neoprene gaskets when better sealing is required. The appropriate knife edge must be present on the filter housing or ceiling grid system for it to fit inside the gel channel.
Gel-seal Mini-pleat HEPA filters include a tank filled with gel, which makes them dependable and especially well suited for workplaces for on-site leaks and DOP testing. In the pharmaceutical business, this filter is typically installed at the end of 0.3μm clean rooms and purifying equipment to control particulates larger than 0.3μm and microorganisms in the clean room or equipment operating regions.
And there are two types to choose.
Side Channel
Top Channel
Standard Features
|
Frame |
Anodized aluminum |
|
Type |
Pleated panel |
|
Media |
Glass fiber |
|
Grille |
Expanded metal painted (Both side) |
|
Separator |
Hot melt |
|
Sealant |
Gel sealant |
|
EN1822 |
H13 / H14 / U15 |
|
Efficiency |
99.99%,99.999% at 0.3μm, 99.9995% at 0.12μm (MPPS) |
|
Max temperature |
70℃ |
|
Max relative humidity |
100% |
Advantages
◆ Dual-sided grille
◆ Compact Mini pleat design ensures reduced airflow resistance while saving energy
◆ A thin structure
◆ Much improved sealing performance with gel
Technical Data
Top Gel Seal
|
Model |
Dimensions W×L×D(mm) |
Rated Airflow (m³/h） |
Initial P.D.(Pa) *Proposed value |
||
|
H4BX6-105L2-WB2 |
370×370×105 |
500 |
H13 |
H14 |
U15 |
|
H4PT7-105L2-WB2 |
510×510×105 |
1000 |
200 |
210 |
249 |
|
H4BX8-105L2-WB2 |
610×610×105 |
1500 |
|||
|
H4PT9-105L2-WB2 |
510×1020×105 |
2000 |
|||
Side Gel Seal
|
Model |
Dimensions W×L×D(mm) |
Rated Airflow (m³/h） |
Initial P.D.(Pa) *Proposed value |
||
|
H4BX6-93L2-WB2 |
370×370×93 |
500 |
H13 |
H14 |
U15 |
|
H4PT7-93L2-WB2 |
510×510×93 |
1000 |
200 |
210 |
249 |
|
H4BX8-93L2-WB2 |
610×610×93 |
1500 |
|||
|
H4PT9-93L2-WB2 |
510×1020×93 |
2000 |
|||
Applications
Mini Pleat Gel Type HEPA Filters The pharmaceutical industry, industrial clean rooms, and biological clean rooms are perfect applications for Gel Seal HEPA Filters. They are also excellent complementary filters for other purification tools.
