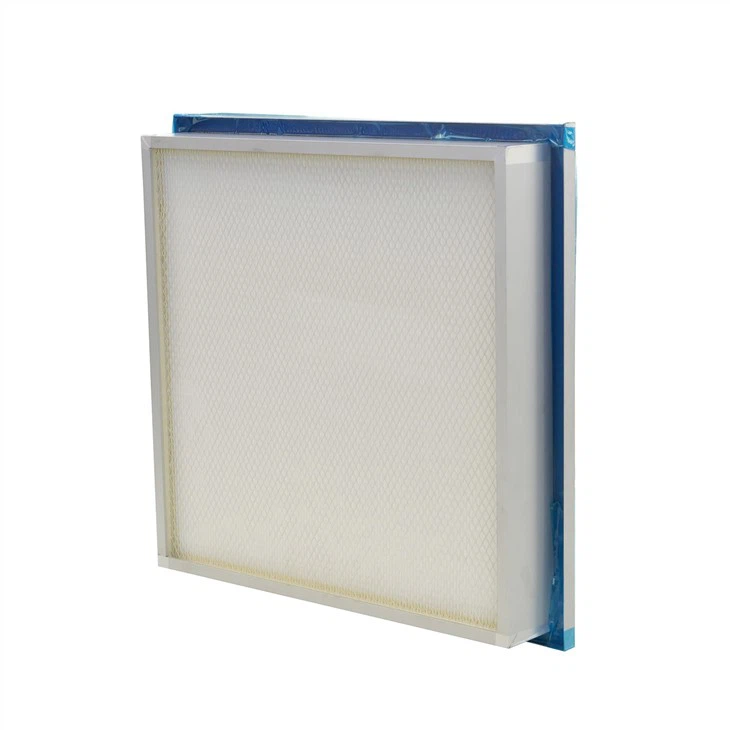

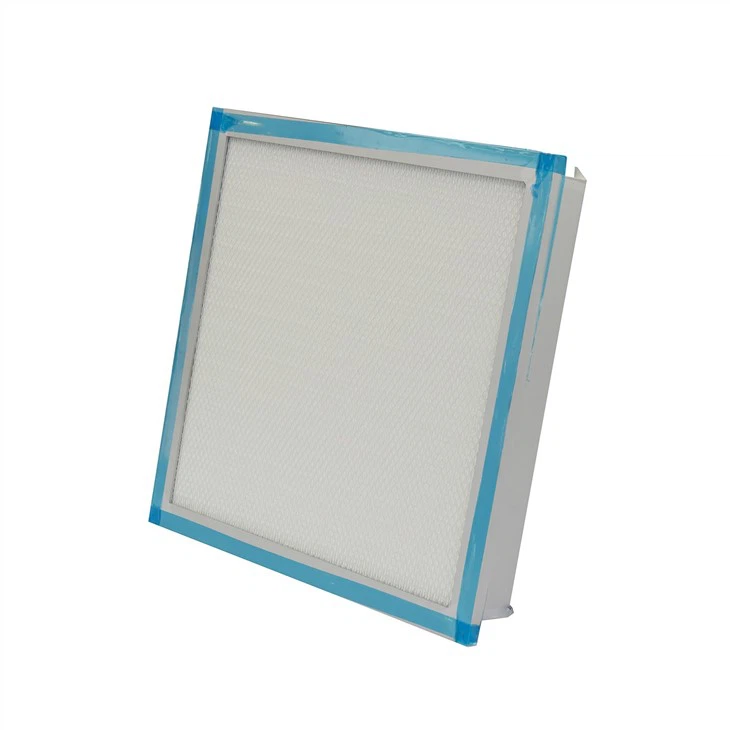

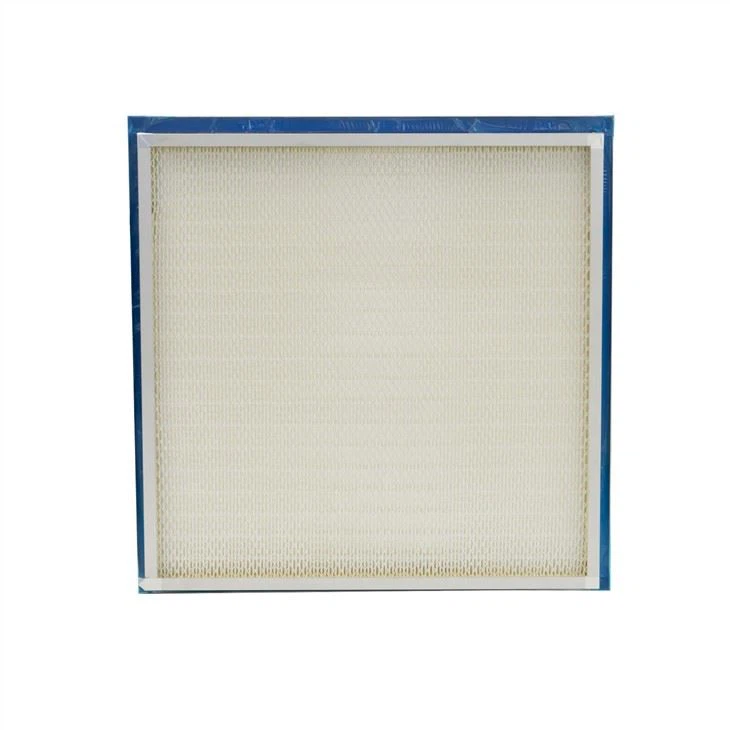

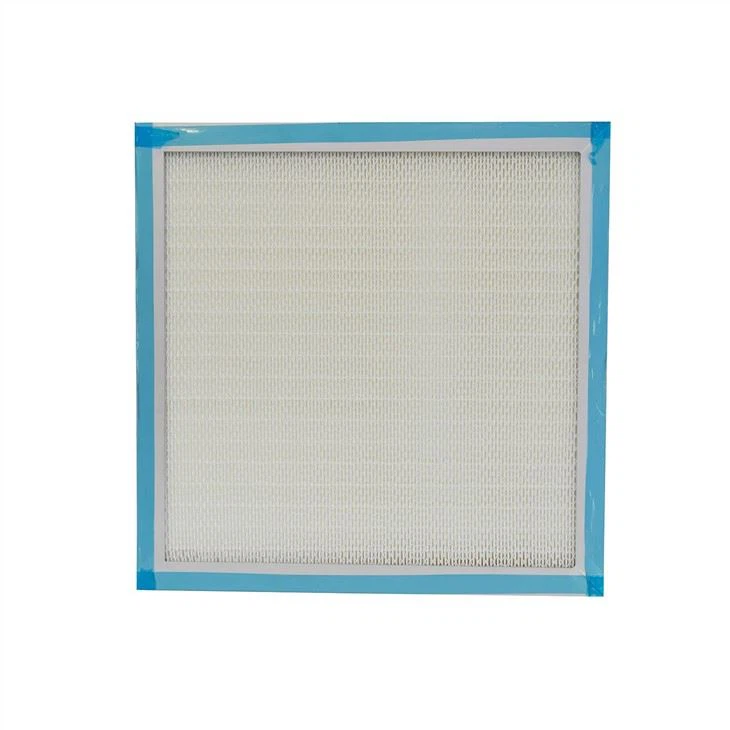

Liquid Tank Filter Without Partition

Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of liquid tank filter without partition in China. With abundant experience, we warmly welcome you to wholesale advanced liquid tank filter without partition from our factory. For price consultation, contact us.



Liquid tank filter without partition using ultrafine glass fiber filter material, air inlet and outlet are protective net, mainly used for a variety of vertical air supply of clean workshop efficient filtration or terminal filtration.

High efficiency filter is a kind of air filter with high filtration efficiency. It can filter extremely fine particles, purify harmful substances in the air, and achieve higher cleanliness standards. High efficiency filter is generally made of glass fiber, synthetic fiber and other high efficiency overperformance materials, through the dense fiber structure and special overperformance technology can achieve high overperformance efficiency. According to national standards, the filtration efficiency of high efficiency filters is between 80% and 99.99%, which is suitable for places with high air quality requirements, such as operating rooms, laboratories and so on.

(1) Mainly used to filter air suspended particles above 0.3um, as the end filtration of various filtration systems.
(2) The sides of the filter are sealed with special jelly glue to ensure the sealing of the whole filter.
(3) Install plastic protective nets at the inlet and outlet of the filter to protect the filter paper from damage.
(4) The filter material is made of ultrafine glass fiber filter paper, separated by hot melt glue.

1. Non-partition design, lower running resistence

2. Wisdely used, compact structure , saving storage space

3. Ultra thickness design, saving installation space

4. Liquid sealing, high sealing performance.

Liquid Tank Filter Without Partition

ModelTop of tank	BoundaryDimension(mm) W*L*D	Protectivenet		Surfacewind speed (m/s)	Rated initial resistance(pa)
H4B*6-105L2-WB2	370*370*105	Double side protective mesh	500		H13	H14	H15
H4PT7-105L2-WB2	510*510*105	Double side protective mesh	1000	1.2	200	210	249
H4B*8-105L2-WB2	610*610*105	Double side protective mesh	1500
H4PT9-105L2-WB2	510*1020*105	Double side protective mesh	2000
Model Top of tank	BoundaryDimension(mm) W*L*D	Protective net		Surface wind speed (m/s)	Rated initial resistance(pa)
H4B*6-105L2-WB2	370*370*105	Double side protective mesh			H13	H14	H15
H4PT7-93L2-WB2	510*510*105	Double side protective mesh		1.2	200	210	249
H4B*8-93L2-WB2	610*610*105	Double side protective mesh
H4PT9-93L2-WB2	510*1020*105	Double side protective mesh

In High air-inlet of pharmacutical factory cleanroom.In high efficiancy filter of Filtration factory Fan Filter Unit product accessories.Liquid Tank Filter Without Partition In GMP pharmacutical A grade cleanroom.

Can design and customize products with small batch orders according to the customer's drawings.

Propose the best solution according to the customer's product, and adopt the best production plan to reduce costs.

We have many years of production experience, if there is a conflict between product design and actual production, we can propose the best modification to meet the actual use of the product.

First-class product quality and perfect after-sales service.

Factory Outlet.
