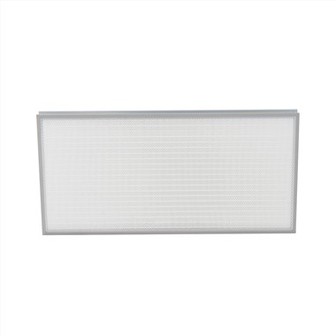

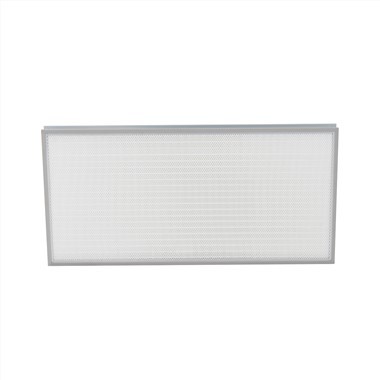

Mini Pleat HEPA Filter

Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of mini pleat hepa filter in China. With abundant experience, we warmly welcome you to wholesale advanced mini pleat hepa filter from our factory. For price consultation, contact us.

Our HEPA filters provide high-efficiency air purification, capturing the majority of airborne particles, including dust, pollen, smoke, and bacteria. Made from premium quality microfibers, they ensure long-lasting performance and maintain low airflow resistance, reducing energy consumption for HVAC and air handling systems.

With excellent dust holding capacity, they extend service life and minimize maintenance frequency. These filters are durable, corrosion-resistant, and suitable for a wide temperature range, making them ideal for cleanrooms, laboratories, hospitals, and industrial environments. We also offer customized sizes and specifications to meet diverse application needs.

Trusted by clients worldwide, our HEPA filters combine advanced filtration technology, reliable performance, and consistent quality, providing safe, clean, and healthy air.

-Material and Construction
Filter Media: High-quality borosilicate glass fiber/ polypropylene
Frame: Aluminum, galvanized steel, or stainless steel
Sealant: Polyurethane or silicone gasket for airtight sealing
Temperature Range: -10°C to 80°C standard; optional high-temperature up to 120°C

-Filtration Efficiency and Standards
H13 Mini Pleat HEPA Filter: ≥99.95% @ 0.3 μm
H14 Mini Pleat HEPA Filter: ≥99.995% @ 0.3 μm
Testing Standard: EN1822:2019
Leakage Test: 100% individually tested with PAO/DOP aerosol

-Airflow and Pressure Drop

Airflow Capacity: 200–3400 m³/h (customizable)
Initial Pressure Drop: 120–250 Pa depending on size and grade
Max Operating Pressure: 500 Pa
Service Life: 12–24 months under normal conditions

• High particle capture efficiency ensures contaminant-free air
• Low airflow resistance reduces energy consumption and HVAC load
• Durable media and frames for long-term stability
• Mini Pleat design increases filtration area while maintaining compact size
• Customizable design for retrofit and new installations
• Individually tested to guarantee leak-free operation
• Suitable for critical environments with strict regulatory requirements

Our Mini Pleat HEPA filters are designed for high-efficiency air filtration across a wide range of environments.

They are widely used in cleanrooms, laboratories, pharmaceutical production, hospitals, and healthcare facilities to maintain sterile and contaminant-free air.

In industrial settings, they effectively protect sensitive equipment and processes from dust and particulate contamination. These filters are also ideal for HVAC systems in commercial buildings, data centers, and electronics manufacturing, ensuring consistent air quality and reducing the risk of equipment failure. With their compact design and high dust holding capacity, Mini Pleat HEPA filters are suitable for spaces where efficient airflow and easy installation are required. They can be used in air handling units, fan filter units (FFUs), and laminar flow systems, providing clean, safe, and healthy air. Their versatility makes them an essential solution for any environment demanding high-performance air filtration.

Since its establishment in 2010, SNYLI has been commiteed to the development of the air purification industry, and will continue to improve its innovative research and development capabilities to help the development of the air purification industry.

Choose our HEPA filters for efficient, durable, and cost-effective air filtration solutions!
