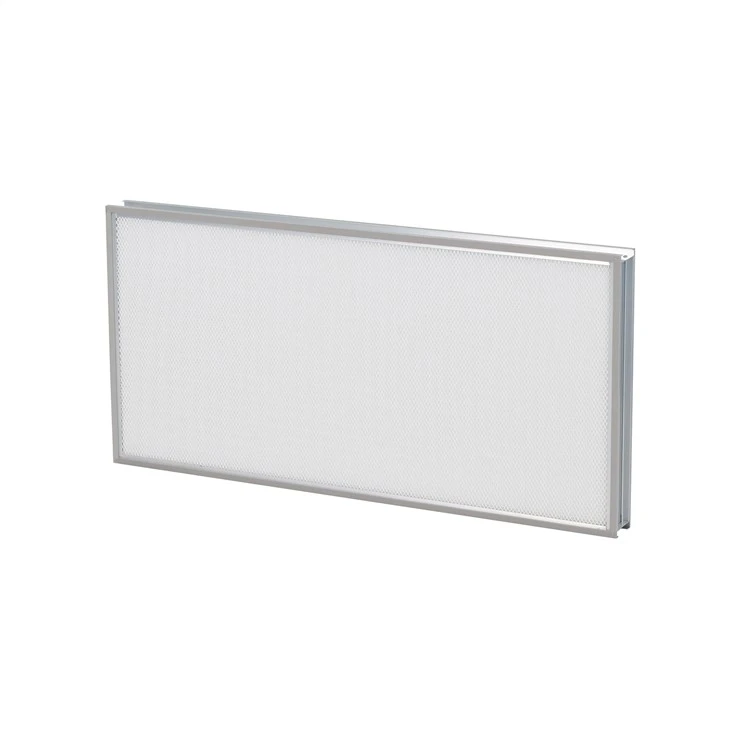

Mini Pleat ULPA Air Filter U15-U16
Mini pleat ULPA air filters are closely related to HEPA filters but are even more efficient. ULPA filters are specified to remove 99.9995% of contaminants 0.12μm or larger in diameter.
Product Introduction
Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of mini pleat ulpa air filter u15-u16 in China. With abundant experience, we warmly welcome you to wholesale advanced mini pleat ulpa air filter u15-u16 from our factory. For price consultation, contact us.
SNYLI mini pleat ULPA air filters are not specific types of air filter filters, but rather specific filtration standards that many types of filters may meet. Implementing this level of air filtration is critical because ULPA filtration can stop the spread of airborne infectious diseases and toxic substances. And they are manufactured with dense, corrosion resistant PTFE membrane and protective substrates, this filter is water resistant and high air flow.
Our ULPA filter panels are intended for terminal filtration in a wide range of applications, including cleanrooms and semiconductor fabrication, as well as the food and beverage industry and pharmaceutical manufacturers.
Features
⒈Maximum Temperature: 70°C
⒉Maximum Humidity: 100% RH
⒊Frame: Anodized Aluminum
⒋Filter Media: Ultra fine glass fiber
⒌Sealant: Polyurethane
⒍Separator: EVA hot melt
⒎Gasket: Neoprene
⒏Clapboard: No clapboard
⒐Suitable for U15/U16 class as per EN1822:2009.

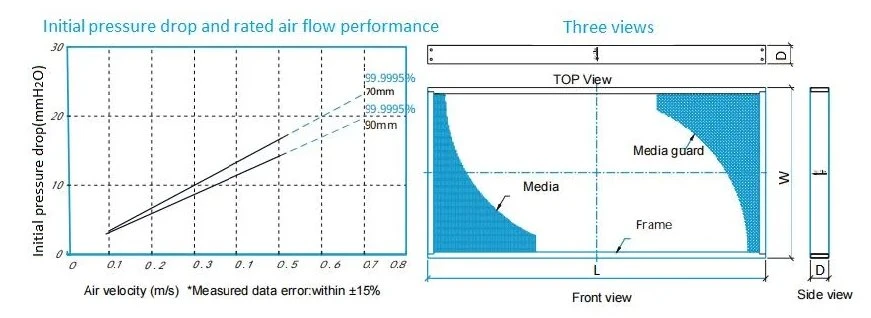

Technical Data
Model | Actual Size W×L×D（mm） | Air Flow (m³/h) | Initial P.D. | Final P.D. *Proposed Value |
U5BX1-70L5-WD1 | 484×484×70 | 630 | 249Pa *Face velocity 0.85m/sec | 500pa |
U5PT2-70L5-WD1 | 630×630×70 | 1100 | ||
U5BX3-70L5-WD1 | 570×1170×70 | 1000 | 117Pa *Face velocity 0.45m/sec | 240Pa |
U5PT4-70L5-WD1 | 1170×1170×70 | 2100 | ||
U5BX1-90L5-WD2 | 484×484×90 | 630 | 210Pa *Face velocity 0.85m/sec | 420Pa |
U5PT2-90L5-WD2 | 630×630×90 | 1100 | ||
U5BX3-90L5-WD2 | 570×1170×90 | 1000 | 98Pa *Face velocity 0.45m/sec | 200Pa |
U5PT4-90L5-WD2 | 1170×1170×90 | 2100 |
Applications
⒈Airline cabin air purifiers
⒉Biomedical air filtration
⒊Electronics manufacturing
⒋Pharmaceutical manufacturing
⒌Vacuum cleaner filters
