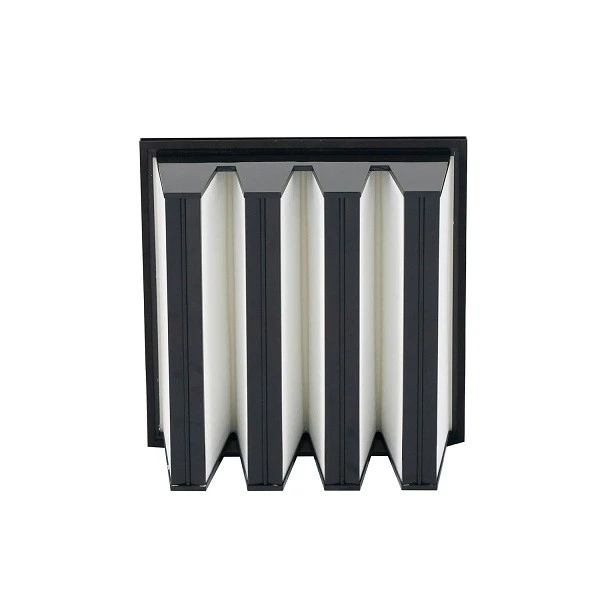

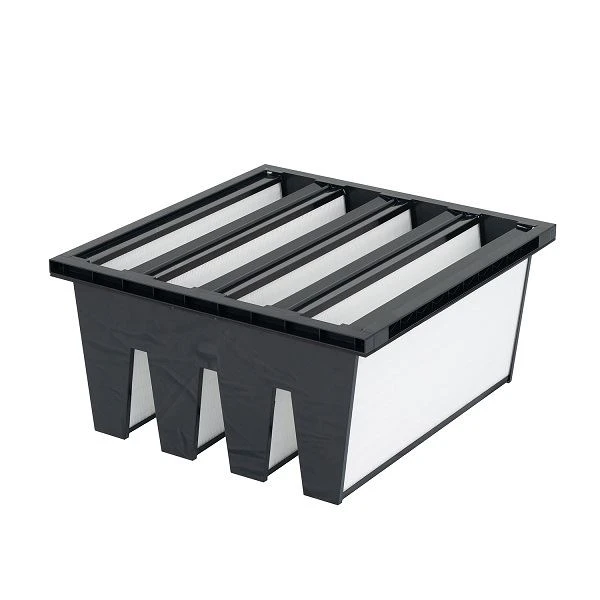

V Cell Sub Efficiency Air Filter
V Cell sub-high efficiency air filter whose filter element is made of polytetrafluoroethylene and frame is made of Acrylonitrile Butadiene Styrene .low resistance and saving energe, Mini-pleated low voltage filtration mesh( H10 penetration efficiency )
Product Introduction
Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of v cell sub efficiency air filter in China. With abundant experience, we warmly welcome you to wholesale advanced v cell sub efficiency air filter from our factory. For price consultation, contact us.
V Cell sub efficiency air filter is used between the fine efficiency particle air filters and high efficiency particle air filters in the industrial filtration system , it is used as a protector of the high efficiency paticle air filter and can filter 0.3-0.5μm particle .
Product specification:
Frame: Acrylonitrile Butadiene Styrene
Media: Polytetrafluoroethylene
Std: EN1822:2009 Class E10 , ASHRAE 52.2-2007 MERV 16
Efficiency: equall or above 95% penetration efficiency at 0.3μm particle （ DOP / PSL / PAO Particle Counting Method ）
Maximum temperature：70℃
Maximum humidity: 100% relative humidity ( Amorphous state )
Customized size : Available
Specification form of Size and Performence:
Feature:
1. Intercept 0.5 micron dust particles, and the filtration efficiency can reach 95% .
2. Some sealing technologies are not deformed and easy to replace.
3. Beautiful appearance, solid structure, with mounting flange frame.
4. The design adopted and the vertical folding of filter materials are stable for long-term use in humid or humid environments.
5. Special V cell frame structure, can withstand large wind volume, can minimize the structural resistance . Design large volume, large dust capacity, high efficiency, low energe consumption, saving installation space, lower operating cost .
6. Screen form can be divided into box type and single convex flange type, we can provide gavanized iron frame, stainless steel frame, aluminum alloy frame and ABS.
Application area: V Cell sub efficienct air filter generally is used in clean room filtration, ventilated clean environment with large air volume and low resistance; Main filter of commercial and industrial ventilation and air conditioning system and so on .
