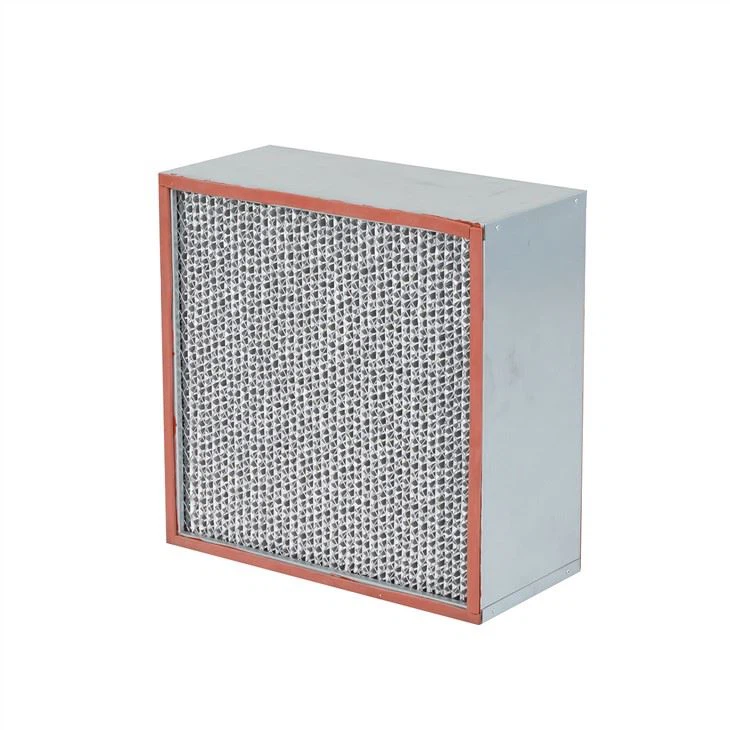

H13 HRT HEPA Filter Air Purifier
HRT HEPA Filter mainly used in the terminal filtration equipment of class 1000 - 100000 clean room environment .
Product Introduction
Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of h13 hrt hepa filter air purifier in China. With abundant experience, we warmly welcome you to wholesale advanced h13 hrt hepa filter air purifier from our factory. For price consultation, contact us.
SPECIFICATIONS
Frame: Reinforced stainless steel
Media: Ultra fine glass fiber
Type:HRT type
Separator:Aluminium
Gasket: EPDM
Sealant: Silicone/Ceramic
EN1822(Efficiency @MPPS) :H12-H14
EST RP-CC001.3: TYPE C, TYPE D
99.97% / 99.99% / 99.999% @ 0.3μm(MPPS)
Max temperature: Max 250℃/Max 350℃
Max relative humidity: 100%
Mounting/Frames:Font and side access housings and
frames are available.
|
Model |
Actual size W×H×D(mm) |
Air flow (m³/h) |
Initial pressure drop(Pa) |
Final pressure drop(Pa) |
|
H4N15-70T5-TB0 |
305×305×70mm |
210 |
249Pa Face velocity 0.75m/sec |
500Pa *Proposed value |
|
H4N8-70T5-TB0 |
610×610×70mm |
930 |
||
|
H4N13-70T5-TB0 |
915×610×70mm |
1400 |
||
|
H4N15-150T5-TB0 |
305×305×150mm |
370 |
249Pa Face velocity 1.34m/sec |
|
|
H4N8-150T5-TB0 |
610×610×150mm |
1620 |
||
|
H4N16-150T5-TB0 |
1220×610×70mm |
3330 |
||
|
H4N15-290T5-TB0 |
1220×610×70mm |
760 |
249Pa Face velocity 2.8m/sec |
|
|
H4N8-290T5-TB0 |
610×610×290mm |
3400 |
||
|
H4N16-290T5-TB0 |
1220×610×290mm |
6970 |
ADVANTAGE
Each HEPA filter is tested according to EN1822:2009.
Grilles on both side are available on request.
APPLICATIONS
HEPA filters are air filters that capture dust particles and various suspended solids with a particle size of 0.3-1 um, efficiency reaching 99.99% for 0.3 um particles.
The HEPA filter is a key component to the air cleanliness control for clean rooms, operating rooms and other places that have strict requirements.
Mainly used in the terminal filtration equipment of class 1000 ~ 100000 clean room environment .
