High Temperature Resistance Air Filter In China
High Temperature Resistance Air Filter In China is usually designed in plate type. Cold rolled galvanized steel sheet or aluminum alloy or stainless steel is used as the outer frame according to the applicable temperature, special glass fiber filter paper is used as the filter material, and special aluminum foil is processed into corrugated spacers and corrugated spacers. The plate can maintain the pleat spacing effectively, effectively making the partitioned high-efficiency air filter use the filter material to the maximum extent under the minimum resistance. The frame is completely sealed with special red silicone to prevent air leakage. It can be used in high temperature environments below 250°C-350°C.
Product Introduction
Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of high temperature resistance air filter in china in China. With abundant experience, we warmly welcome you to wholesale advanced high temperature resistance air filter in china from our factory. For price consultation, contact us.
High Temperature Resistance Air Filter In China is usually designed in plate type. Cold rolled galvanized steel sheet or
aluminum alloy or stainless steel is used as the outer frame according to the applicable temperature, special glass fiber filter paper is used as the filter material, and special aluminum foil is processed into corrugated spacers and corrugated spacers. The plate can maintain the pleat spacing effectively, effectively making the partitioned high-efficiency air filter use the filter material to the maximum extent under the minimum resistance. The frame is completely sealed with special red silicone to prevent air leakage. It can be used in high temperature environments below 250°C-350°C.
The High-Temperature Stainless Steel Filters use separators to maintain the precise spacing of the pleats to make most of the filter media. Therefore, the filter has advantages of large air volume, low resistance and uniform wind velocity, meanwhile, it can adapt to high temperature environments. It is mainly used in surface coatings industry to filter particulates such as tar, soot and dust generated in the drying room to ensure the cleanliness of the product surface. In addition, it can be used in high temperature environments such as clean ovens or baking tunnel furnaces, and filtration in drying ovens in the system's electronic circuit board production process.
high temp filters are specially designed to protect processes at high temperatures. They meet the strictest requirements and maintain their integrity and rated performance values under extreme temperatures.These filters are typically used in automotive, food and beverage.
Large air volume and low resistance.The high temperature resistant high efficiency filter is usually designed in plate type. Cold rolled galvanized steel sheet oraluminum alloy or stainless steel is used as the outer frame according to the applicable temperature, special glass fiber filter paper is used as the filter material, and special aluminum foil is processed into corrugated spacers and corrugated spacers. The plate can maintain the pleat spacing effectively, effectively making the partitioned high-efficiency air filter use the filter material to the maximum extent under the minimum resistance. The frame is completely sealed with special red silicone to prevent air leakage. It can be used in high temperature environments below 250°C-350°C.
Products Parameter
|
Nominal size W×H×D ( in.) |
Actual size W×H×D ( mm) |
Filter Rating (EN779:2012) |
Air flow (m³/h) |
Initial P.D. (Pa) |
Rec Final P.D. (Pa) |
|
12×12×6 |
305×305×150 |
H13 |
235 |
250 |
500 |
|
12×24×6 |
305×610×150 |
540 |
250 |
500 |
|
|
24×24×6 |
610×610×150 |
1180 |
250 |
500 |
|
|
12×12×12 |
305×305×292 |
320 |
250 |
500 |
|
|
12×24×12 |
305×610×292 |
900 |
250 |
500 |
|
|
24×24×12 |
610×610×292 |
1960 |
250 |
500 |
Products Application
High Temperature Resistance Air Filter In China Clean room fresh air conditioning system, end filter of clean room.End filter of ventilation with high fire-proof/high temp resistance working condition.Widely be used in electronics, optics, semiconductor, coating, chemical, cosmetics, pharmacy, hospitals and automobile industries.Mainly used for air filtration in the high temperature environment of the drying room in the surface coating industry.
Equipment and systems that require high-temperature air purification, such as ultra-clean ovens Filtration and purification of drying furnace in electronic circuit board production process Filter the tar, soot, dust and other particles produced in the high temperature drying room to prevent damage to the paint quality on the surface of the item.
Products Features
Temperature:350ºC;Humidity:100%RH(NO Dew);Frame : SUS;Initial P.D : 25.4 mmAq;Air Volume : 1000 CMH;Temperature Tolerance: Up to 350 Celsius degrees;Sealant : ceramics sealant.

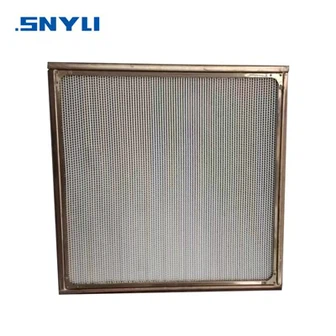

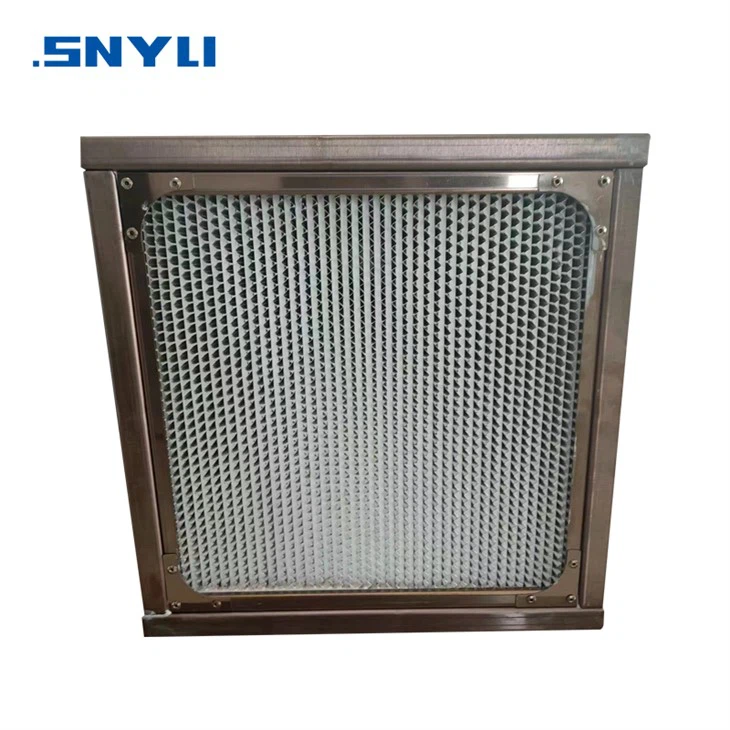

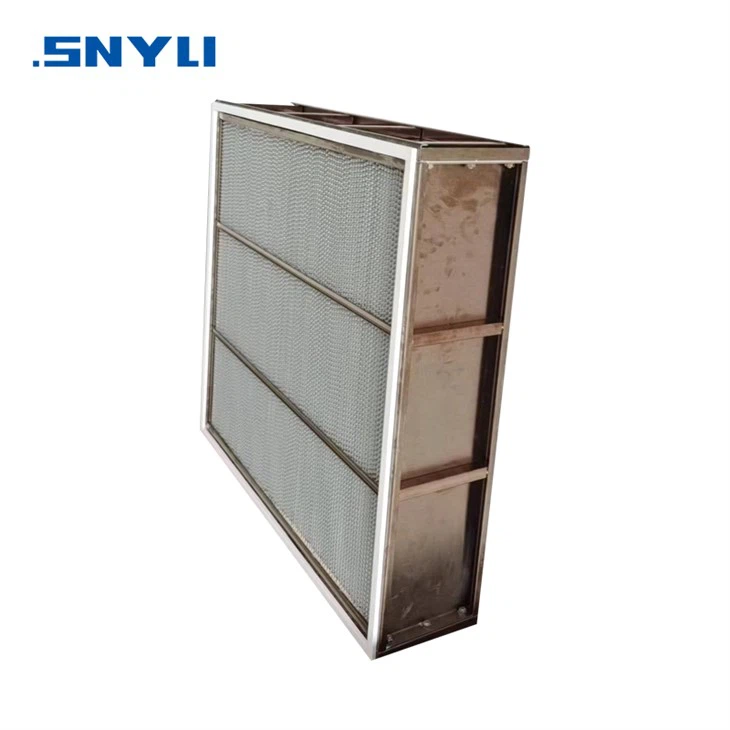

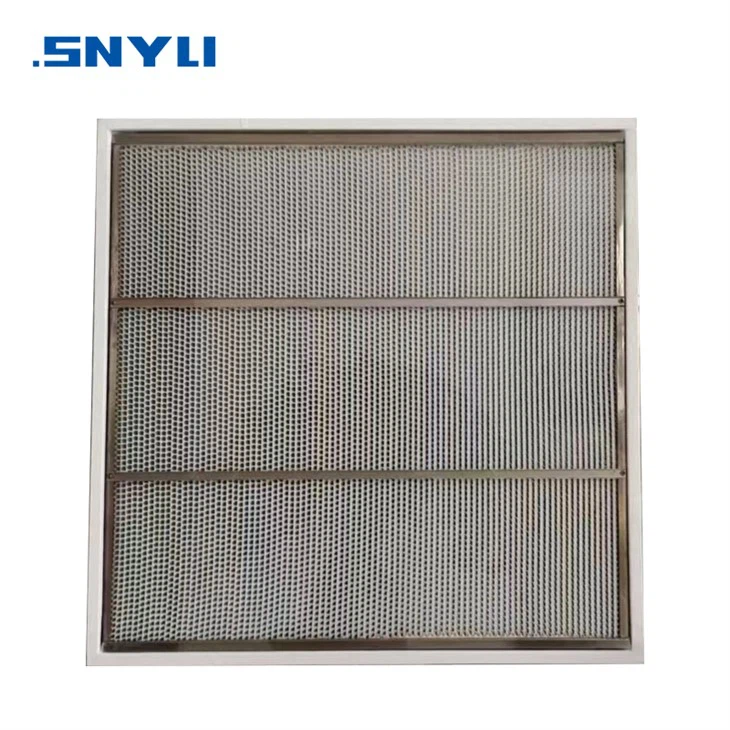

Product photos
Why Chools Us
Can design and customize products with small batch orders according to the customer's drawings.
Propose the best solution according to the customer's product, and adopt the best production plan to reduce costs.
We have many years of production experience, if there is a conflict between product design and actual production, we can propose the best. modification to meet the actual use of the product.
First-class product quality and perfect after-sales service.
Factory Outlet.
Products Technology
Packaging & Delivery
FedEx/DHL/UPS/TNT for samples, Door-to-Door;
By Air or by Sea for batch goods; Airport/ Port receiving;
Customers specifying freight forwarders or negotiable shipping methods;
Delivery Time: 1-3 days for samples; Generally 7-10 days for batch goods,also depends on the specific quanlity.
FAQ
Q1.Are you a manufacture or trading company?
Snyli Environmental Technology (Shandong) Co., Ltd was established in 2010, is a professional service provider of air purification products integrating R&D, production and sales, with registered brand- SYNLI.
Q2: Where are air filters commonly used?
Q3: What are your testing criteria?
Q4: What is the international standard for air filters?
American :Pre (MERV5-7), Medium (MERV8-14), HEPA (MERV15-19) ULPA(MERV 20)
Q5: What is your sample policy?
Q6: How about your after-sales service?
