Oven Air Filter
Oven Air Filter Mainly used for filtering 0.3 μ Air suspended particles above m;The filter material is made of high-temperature resistant ultra-fine glass fiber filter paper, separated by aluminum foil;The corrugated aluminum partition maintains equal spacing between each origami, making it easy for airflow to pass through, ensuring effective utilization of the filter material and increasing strength.
Product Introduction
Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of oven air filter in China. With abundant experience, we warmly welcome you to wholesale advanced oven air filter from our factory. For price consultation, contact us.
Oven Air Filter is usually designed in plate type. Cold rolled galvanized steel sheet or aluminum alloy or stainless steel is used as the outer frame according to the applicable temperature, special glass fiber filter paper is used as the filter material, and special aluminum foil is processed into corrugated spacers and corrugated spacers. The plate can maintain the pleat spacing effectively, effectively making the partitioned high-efficiency air filter use the filter material to the maximum extent under the minimum resistance. The frame is completely sealed with special red silicone to prevent air leakage. It can be used in high temperature environments below 250°C-350°C.
As the perimeter frame of the filter is made of moisture-proof cardboard, there are no any deformations, breakages, or distortions happened consequently. Moreover, the diagonal paper member supporting design of both sides of the frame makes it is possible to hold the filter media more fixedly indeed. In addition, the media V-pleating design makes the free filtration area of the filter being maximized. It not only can provide better filtration efficiency but makes the filter construction being more sturdily and stably so as to ensure a longer life time as well. Besides of that, filter media has been sealed to frame firmly so as to prevent it from air leakage eventually.
1. Mainly used for filtering 0.3 μ Air suspended particles above m;
2. The filter material is made of high-temperature resistant ultra-fine glass fiber filter paper, separated by aluminum foil;
3. The corrugated aluminum partition maintains equal spacing between each origami, making it easy for airflow to pass through, ensuring effective utilization of the filter material and increasing strength;
4. The filter is sealed with special high-temperature resistant inorganic adhesive around it to ensure its sealing performance;
5. Can withstand high temperatures of 300-400 ℃ without silicon, suitable for industries that require high temperature resistance but do not allow silicon content
6. High efficiency, low resistance, and large dust capacity.
Products Parameter
|
Nominal size W×H×D ( in.) |
Actual size W×H×D ( mm) |
Filter Rating (EN779:2012) |
Air flow (m³/h) |
Initial P.D. (Pa) |
Rec Final P.D. (Pa) |
|
12×12×6 |
305×305×150 |
H13 |
235 |
250 |
500 |
|
12×24×6 |
305×610×150 |
540 |
250 |
500 |
|
|
24×24×6 |
610×610×150 |
1180 |
250 |
500 |
|
|
12×12×12 |
305×305×292 |
320 |
250 |
500 |
|
|
12×24×12 |
305×610×292 |
900 |
250 |
500 |
|
|
24×24×12 |
610×610×292 |
1960 |
250 |
500 |
|
|
★ Other sizes and air flow are available on request. |
|||||
Products Application
Oven Air Filter Of Filtration Clean room fresh air conditioning system, end filter of clean room.
End filter of ventilation with high fire-proof/high temp resistance working condition.
Widely be used in electronics, optics, semiconductor, coating, chemical, cosmetics, pharmacy, hospitals and automobile
industries.
Mainly used for air filtration in the high temperature environment of the drying room in the surface coating industry.
Equipment and systems that require high-temperature air purification, such as ultra-clean ovens
Filtration and purification of drying furnace in electronic circuit board production process
Filter the tar, soot, dust and other particles produced in the high temperature drying room to prevent damage to the paint
quality on the surface of the item.
Products Features
aluminum alloy or stainless steel is used as the outer frame according to the applicable temperature, special glass fiber filter paper is used as the filter material, and special aluminum foil is processed into corrugated spacers and corrugated spacers. The plate can maintain the pleat spacing effectively, effectively making the partitioned high-efficiency air filter use the filter material to the maximum extent under the minimum resistance. The frame is completely sealed with special red silicone to prevent air leakage. It can be used in high temperature environments below 250°C-350°C.

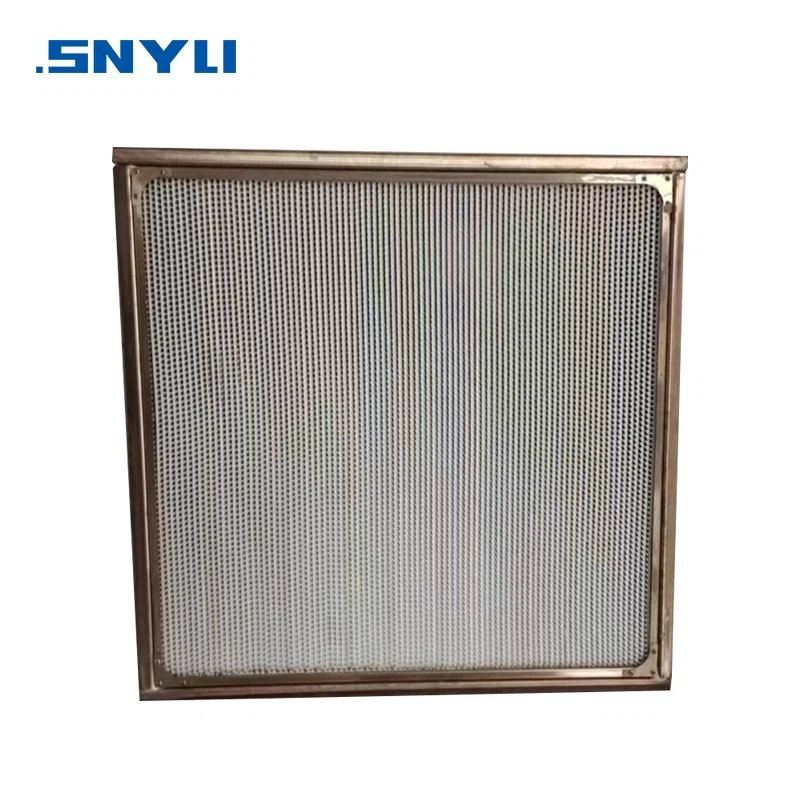

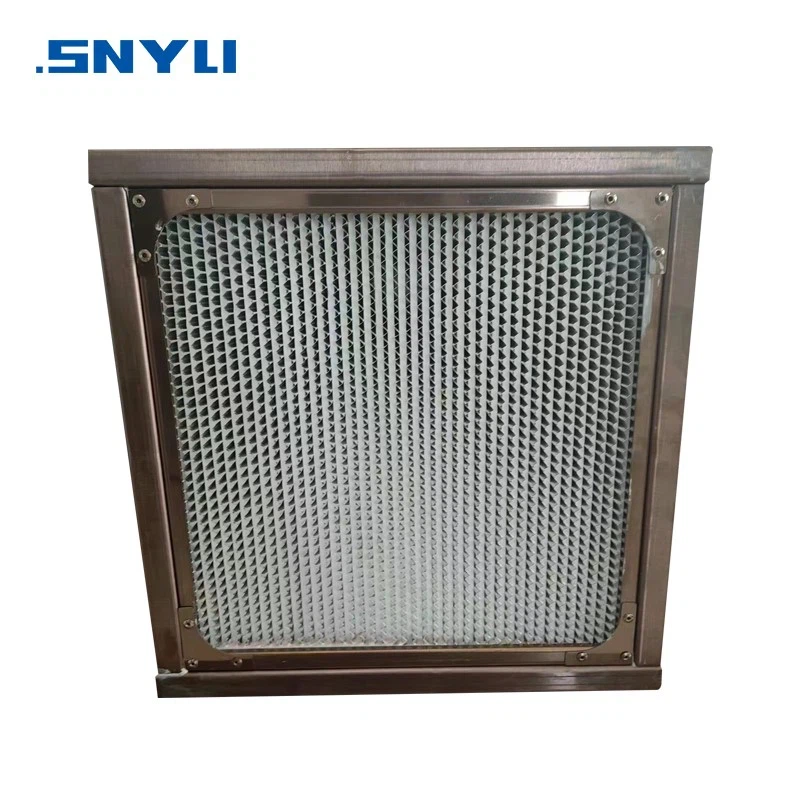

Product photos
Why Chools Us
Can design and customize products with small batch orders according to the customer's drawings.
Propose the best solution according to the customer's product, and adopt the best production plan to reduce costs.
We have many years of production experience, if there is a conflict between product design and actual production, we can propose the best. modification to meet the actual use of the product.
First-class product quality and perfect after-sales service.
Factory Outlet.
Products Technology
Packaging & Delivery
FedEx/DHL/UPS/TNT for samples, Door-to-Door;
By Air or by Sea for batch goods; Airport/ Port receiving;
Customers specifying freight forwarders or negotiable shipping methods;
Delivery Time: 1-3 days for samples; Generally 7-10 days for batch goods,also depends on the specific quanlity.
FAQ
Q1.Are you a manufacture or trading company?
Snyli Environmental Technology (Shandong) Co., Ltd was established in 2010, is a professional service provider of air purification products integrating R&D, production and sales, with registered brand- SYNLI.
Q2: Where are air filters commonly used?
Q3: What are your testing criteria?
Q4: What is the international standard for air filters?
American :Pre (MERV5-7), Medium (MERV8-14), HEPA (MERV15-19) ULPA(MERV 20)
Q5: What is your sample policy?
Q6: How about your after-sales service?
