Aluminum Mesh Air Filters

Name: China Aluminum Mesh Air Filters Suppliers, Manufacturers, Factory - Wholesale Price - SNYLI
Brand: SNYLI
SKU: 180108508

Aluminum Mesh Air Filters are a type of primary filter that uses multiple layers of metal mesh (such as aluminum mesh) as the filter media. They capture large particles (such as dust, insects, fibers, etc.) through the mechanical interception effect of the metal mesh. They feature a sturdy structure, high temperature resistance, and the ability to be repeatedly cleaned.

Send Inquiry

Product Introduction

Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of aluminum mesh air filters in China. With abundant experience, we warmly welcome you to wholesale advanced aluminum mesh air filters from our factory. For price consultation, contact us.

Product Description

Aluminum mesh air filters are made up of expanded aluminium foil mesh in 3 layers, 5 layers, 9 layers and 19 layers. The frame depth can meet the requirement of 10mm, 21mm, 46mm and 96mm. These filters are many times wasable and extremely cost-effective.

Metal mesh filter is suitable for scenarios with high durability requirements such as industrial ventilation, air conditioning pre-filtration, and gas turbine intake protection. Its filtration efficiency is generally G1 (EN779 standard), with low air resistance and a long service life.

Frame: Aluminium alloy / Galvanized steel/Stainless steel

Media: Expanded aluminium foil mesh

Design: Panel type

Maximum temperature: 250ºC

Maximum relative humidity: 100%

Customized size: Available

Common model

Model	Frame dimension W×H×D (mm)	Air flow(m³/h)	Initial P.D.(Pa)
CG1B-17L-JW10A	290×595×10	1700	15
CG1B-34L-JW10D	595×595×10	3400	15
CG1B-17L-JW21A	290×595×21	1700	20
CG1B-34L-JW21D	595×595×21	3400	20
CG1B-17L-JW46A	290×595×46	1700	25
CG1B-34L-JW46D	595×595×46	3400	25
CG1B-17L-JW96A	290×595×96	1700	30
CG1B-34L-JW96D	595×595×96	3400	30

Product Features

Aluminum mesh air filters are made of 100% metal, easy to clean and maintain.

1. The multi-layer folded and expanded aluminum foil is arranged in different densities and the apertures are arranged from coarse to fine, so that the air changes the flow direction many times when passing through the filter screen, and increases its dust collection capacity and efficiency.

2. Metal mesh filter has low resistance, long service life, can be cleaned repeatedly, and is extremely economical.

3. Wire mesh furnace filters has the characteristics of safety, sturdiness, high temperature resistance, acid and alkali resistance.

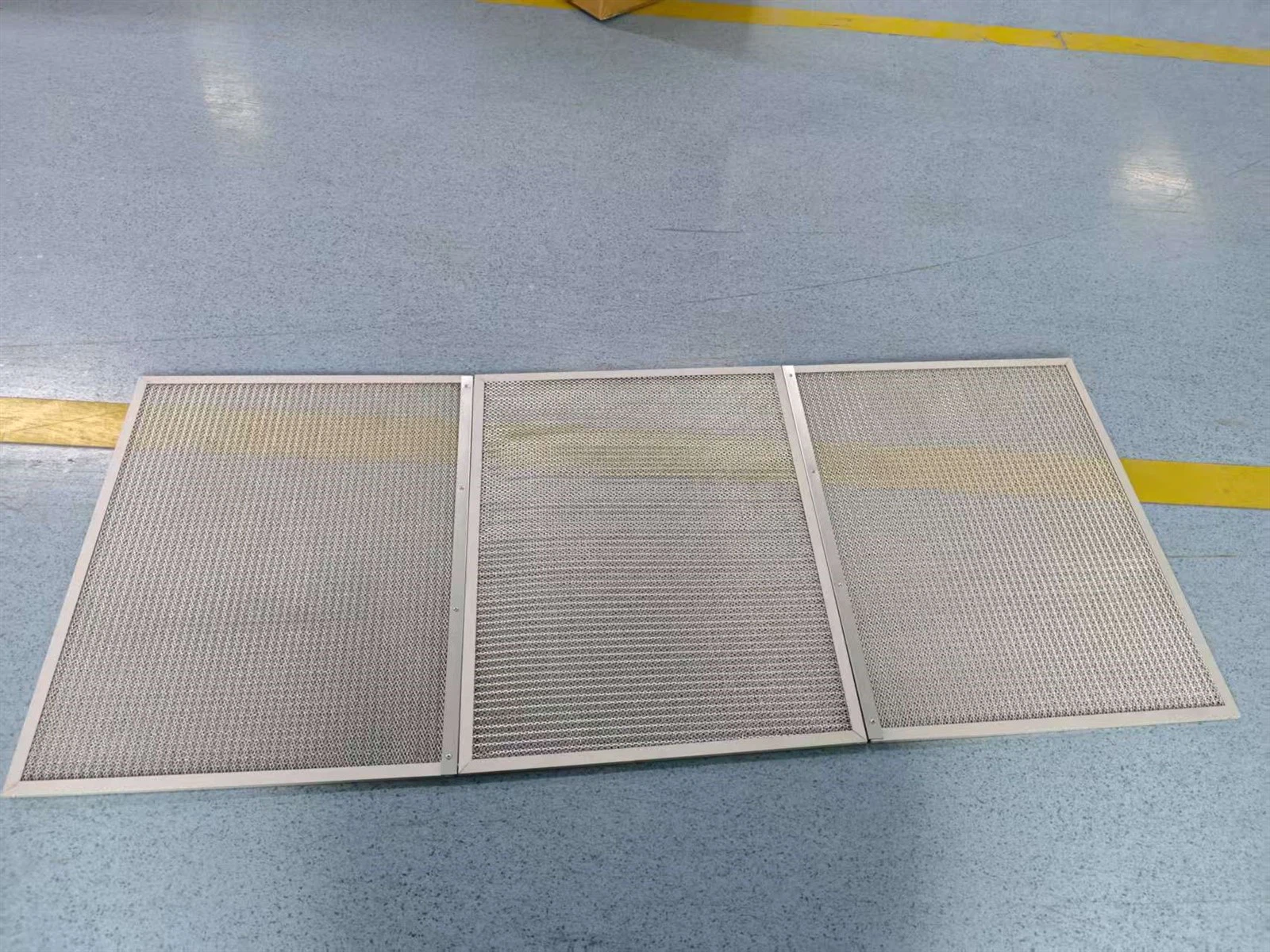

Some metal mesh filters we ever made

Product Applications

As a kind of primary filter, aluminum mesh air filters can be used in various ventilation systems.

1. Coarse dust filtration system for air conditioning in general buildings.

2. Primary filtration of industrial grade air ventilation equipment.

3. The ventilation system with acid and alkali resistance, high strength and high temperature resistance is required.

Applications

About sNYLI

Snyli Environmental Technology (Shandong) Co.,Ltd was established in 2010, registered in Liaocheng City, Shandong Province, mainly engaged in air filtration products. Since the establishment of our company, we have been continuously deepening our research and development to improve our strength, and now we have mastered many patents and obtained ISO/CE certificates.
After more than ten years, SNYLI has set up branches in many places in China and a trading company in Jinan City, Shandong Province. At present, SNYLI products have been exported to both home and abroad, and we have signed long-term co-operation agreements with customers in many countries.
