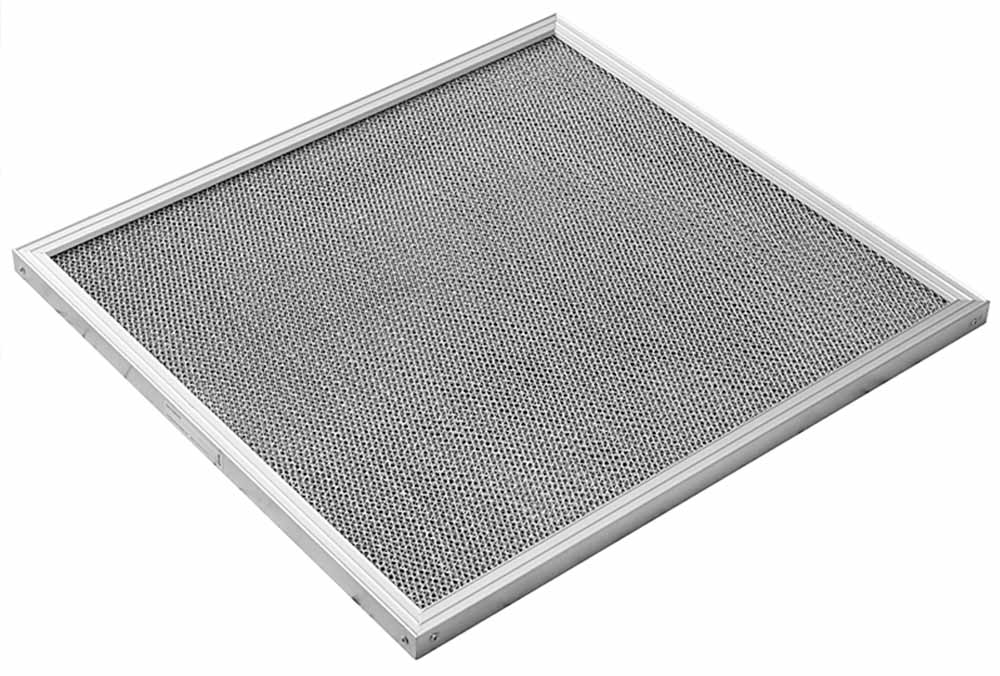

Corrugated Aluminum Mesh Air Filter
Corrugated Aluminum Mesh Air Filter is a durable and reusable pre-filter designed to capture large airborne particles while protecting downstream filtration systems. Made from high-quality corrugated aluminum mesh, it features low airflow resistance, excellent corrosion resistance, and long service life. The filter is easy to clean and maintain, making it an economical choice for HVAC systems, air handling units, ventilation equipment, and various industrial air filtration applications.
Product Introduction
Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of corrugated aluminum mesh air filter in China. With abundant experience, we warmly welcome you to wholesale advanced corrugated aluminum mesh air filter from our factory. For price consultation, contact us.
Product Description
Corrugated Aluminum Mesh Air Filter is a reusable air filtration solution designed for removing large airborne contaminants and protecting the performance of downstream filtration equipment. Constructed with specially formed aluminum mesh layers, this filter combines strong mechanical strength with excellent airflow performance.
The corrugated design increases the contact area between air and filter media, allowing efficient capture of dust particles, fibers, lint, and other coarse pollutants. Compared with disposable filtration products, it provides a longer service life and a more sustainable filtration option for commercial and industrial ventilation applications.
| Item | Specification |
|---|---|
| Product Type | Corrugated Aluminum Mesh Air Filter |
| Filter Media | Multi-layer Corrugated Aluminum Mesh |
| Frame Material | Aluminum Alloy / Galvanized Steel / Stainless Steel |
| Mesh Material | Aluminum Wire Mesh |
| Filtration Class | G1(EN 779) / ISO 16890 Coarse Grade |
| Filtration Efficiency | 60%–90% (depending on mesh layers and configuration) |
| Target Particles | Dust, lint, fibers, hair, and large airborne particles |
| Operating Temperature | Up to 250℃ (depending on material selection) |
| Humidity Resistance | Suitable for high humidity environments |
| Filter Thickness | 21mm / 46mm / Customized |
| Washable Performance | Washable and reusable after cleaning |
| Cleaning Method | Water washing, compressed air, mild detergent |
| Service Life | Long-term reusable with proper maintenance |
| Application |
HVAC systems, AHU, ventilation systems, industrial air intake |
Common Models
| Media Material | Efficiency | Thickness | Size Example | Airflow | Initial Pressure Drop |
|---|---|---|---|---|---|
| Aluminum mesh | ISO Coarse 30% | 25 mm | 592×592×25 mm | 3000 m³/h | 35 Pa |
| Aluminum mesh | ISO Coarse 40% | 50 mm | 592×592×50 mm | 3000 m³/h | 45 Pa |
| Galvanized steel mesh | ISO Coarse 30%-40% | 25/50 mm | 592×592 mm | 3000 m³/h | 35-45 Pa |
| Stainless steel mesh | ISO Coarse 30%-40% | 25/50 mm | 592×592 mm | 3000 m³/h | 30-35 Pa |
| Stainless steel mesh | ISO Coarse 30%-40% | 25/50 mm | 592×592 mm | 3000 m³/h | 30-35 Pa |
Product Features
Corrugated Aluminum Mesh Air Filter offers a combination of durability, easy maintenance, and stable filtration performance for various air intake systems.
- Multi-Layer Corrugated Structure
The specially shaped aluminum mesh creates multiple filtration paths, improving dust retention capacity while maintaining smooth air circulation. This structure helps reduce airflow resistance and supports continuous operation.
- Washable and Long-Term Reusable Design
Made from corrosion-resistant aluminum materials, the filter can be cleaned and reused many times. As a Permanent Washable Metal Mesh Air Filter, it helps reduce replacement frequency and provides a cost-effective solution for facilities requiring continuous air filtration.
- Strong Mechanical Performance
The rigid metal construction prevents deformation during operation and maintains consistent performance under different airflow conditions. It is suitable for environments where traditional fiber filters may not provide sufficient durability.
- Flexible Configuration Options
Different frame materials, mesh thicknesses, dimensions, and filter layers can be customized.
Product Applications
Corrugated Aluminum Mesh Air Filter is widely used in ventilation and air treatment systems where reliable pre-filtration is required.
This filter is commonly installed in:
- HVAC air intake systems
- Air handling units (AHU)
- Commercial ventilation equipment
- Industrial air circulation systems
For applications requiring a robust metal filtration solution, the Washable Metal Panel Air Filter provides excellent protection for secondary filters and ventilation components. It is especially suitable for systems that require frequent cleaning and stable airflow performance.
Maintenance & Cleaning
Proper maintenance can significantly extend the operating life of the filter and maintain filtration efficiency.
The cleaning frequency depends on the surrounding environment and dust concentration. In general, regular inspection is recommended for systems operating continuously.
Cleaning procedures include:
- Remove the filter from the installation frame.
- Use compressed air to remove loose dust and particles.
- Wash the mesh surface with clean water or mild detergent when necessary.
- Allow the filter to dry completely before reinstalling.
Because of its washable metal structure, the filter can maintain reliable performance after repeated cleaning cycles, making it suitable for long-term industrial applications.
Why Choose SNYLI
SNYLI provides professional air filtration solutions with experience in designing and manufacturing various HVAC and industrial filtration products.
Our advantages include:
Customized Manufacturing
We support customized sizes, materials, frame designs, and filtration configurations to meet different installation requirements.
Quality Material Selection
High-quality aluminum mesh and durable frame structures are selected to ensure product stability, corrosion resistance, and extended service life.
Flexible Production Capability
From standard filter models to customized solutions, SNYLI can provide efficient manufacturing support for different industries and applications.
Professional Filtration Experience
With a focus on air filtration technology, SNYLI understands the requirements of distributors, contractors, and industrial users worldwide.
