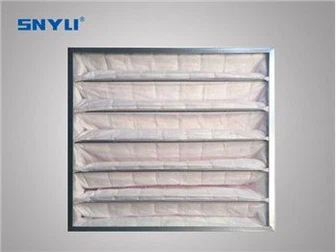

Self Supported Pocket Filters
SNYLI's Self supported pocket filters are available in G4 and M5 efficiency rate. It's made of new material, the ventilation rate can reach 3400m3/h. The composite material can ensure the depth filtration structure and stiffness, which can ensure that the material is still self-supporting when the air filter is replaced ability.
Product Introduction
Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of self supported pocket filters in China. With abundant experience, we warmly welcome you to wholesale advanced self supported pocket filters from our factory. For price consultation, contact us.
Products Introduction
Self supported pocket filters is characterized for its self-supported structure,which keep the filter open in a V-shape, so that when air passes through, all the filter area can be effectively used. It can effectively reduce pressure loss and improve filtration efficiency.
Products Specifications
Frame: Plastic/ Galvanized steel /Aluminium alloy
Media: Polyester Or Melt Blown Polypropylene Filter Media
Maximum temperature: 98ºC
Maximum relative humidity: 100%
EN 779: G4, M5
Customized size: Available
Common Specifications
Model | Filter class | Actual size | Air flow(m³/h) | Initial P.D.(Pa) | No. of Pocket |
SL287592360-3 | G4 | 287×592×360 | 1700 | 45 | 3 |
SL592592360-6 | G4 | 592×592×360 | 3400 | 45 | 6 |
SL287592600-3 | G4 | 287×592×600 | 1700 | 45 | 3 |
SL592592600-6 | G4 | 592×592×600 | 3400 | 45 | 6 |
SN287592360-3 | M5 | 287×592×360 | 1700 | 50 | 3 |
SN592592360-6 | M5 | 592×592×360 | 3400 | 50 | 6 |
SN287592600-3 | M5 | 287×592×600 | 1700 | 50 | 3 |
SN592592600-6 | M5 | 592×592×600 | 3400 | 50 | 6 |
Products Features
● Self supported pocket filters has high dust retention,low pressure drop and long service Life
● It also has light weight and is easy to be installed.
● Customized Pocket Length
● Trouble Free Air Flow
Products Application
● Gas Turbine Air Intake Systems
● Hospital Operating Rooms
● Clean Filed Plants
● Pharmaceuticals Production
● Food Processing Facilities
● Air Port
● Marine Vessels
● IT Park
