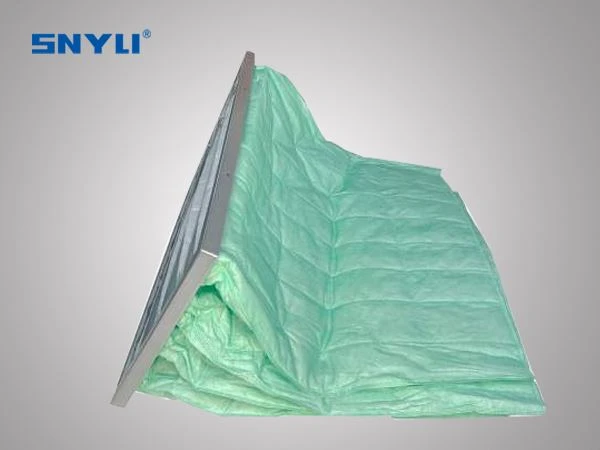

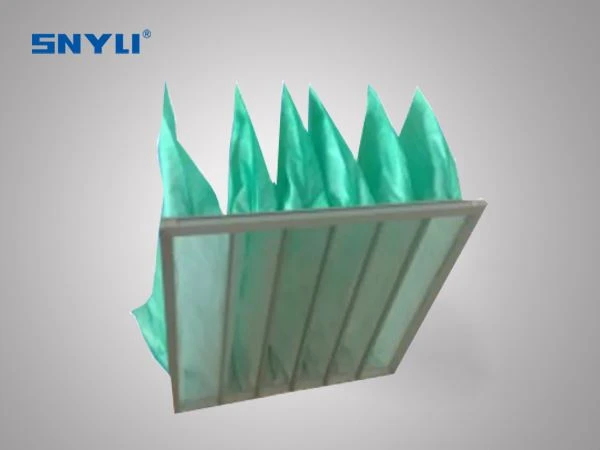

MERV 11 Pocket Air Filter

Name: China MERV 11 Pocket Air Filter Suppliers, Manufacturers, Factory - Wholesale Price - SNYLI
Brand: SNYLI
SKU: 180110219

MERV 11 pocket air filter offer an efficiency rate of 80 % ~85% for filtering particles 3~10μm, 60-65% for filtering particles 1~3μm,20% for filtering particles 0.3~1μm.

Send Inquiry

Product Introduction

Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of merv 11 pocket air filter in China. With abundant experience, we warmly welcome you to wholesale advanced merv 11 pocket air filter from our factory. For price consultation, contact us.

Products Introduction

350.2

MERV 11 pocket air filterare and other pocket air filers are commonly installed in HVAC systems in food and beverage plants, data centers, industrial sites, offices, and public spaces to capture air particles and contaminants in the air stream to improve indoor air quality.In this way, pollutants can be effectively prevented from accumulating in the equipment, causing unnecessary damage to the equipment and improving the service life of the equipment.Pocket air filters capture more particles and are replaced less often than non-folding panel filters.In terms of filtration efficiency, the higher the MERV rating of the filter, the more effective it is at capturing small particles.

Products Specifications

Frame: Aluminium alloy / Galvanized steel/Stainless steel

Media: Synthetic media

Design: Pocket type

Maximum temperature: 93ºC

Maximum relative humidity: 100%

Frame thickness: 21mm, 25mm, 46mm

Customized size: Available

Products Parameter

Model	Actual size W×H×D(mm)	Pocket Qty	Air flow (m³/h)	Initial P.D.(Pa)
CG3D-17T-3A	287×592×381	3	1700	82
CG3D-28T-5A	490×592×381	5	2850	82
CG3D-34T-6A	592×592×381	6	3400	82
CG3D-17T-4A	287×592×381	4	1700	75
CG3D-34T-8A	592×592×381	8	3400	75
ZF5D-17T-3B	287×592×533	3	1700	70
ZF5D-28T-5B	490×592×533	5	2850	70
ZF5D-34T-6B	592×592×533	6	3400	70
ZF5D-17T-4B	287×592×533	4	1700	63
ZF5D-34T-8B	592×592×533	8	3400	63
ZF8D-17T-3C	287×592×762	3	1700	52
ZF8D-28T-5C	490×592×762	5	2850	52
ZF8D-34T-6C	592×592×762	6	3400	52
ZF8D-17T-4C	287×592×762	4	1700	48
ZF8D-34T-8C	592×592×762	8	3400	48

Products Features

Pocket air filter are widely used, can be used for coarse filter, medium effect filter.
In the case of achieving the same filtering effect, compared with panel typ filter, pocket air filter has the advantages of low investment cost, long service life and low filtration cost
High filtration accuracy, large filtration capacity and less wind resistance.
Pocket air filter replacement is more convenient.

Products Application

About the service life of MERV 11 pocket air filter, if there is a primary filter in the front section as a pretreatment, the use of the medium efficiency filter is about 6 months. If the medium-efficiency filter is used as the first pretreatment, the service life is between 1-3 months, depending on the specific environment. It should be noted that the MERV 11 pocket air filter cannot be cleaned, because the filter medium will be destroyed after cleaning, so the efficiency will be greatly reduced.
