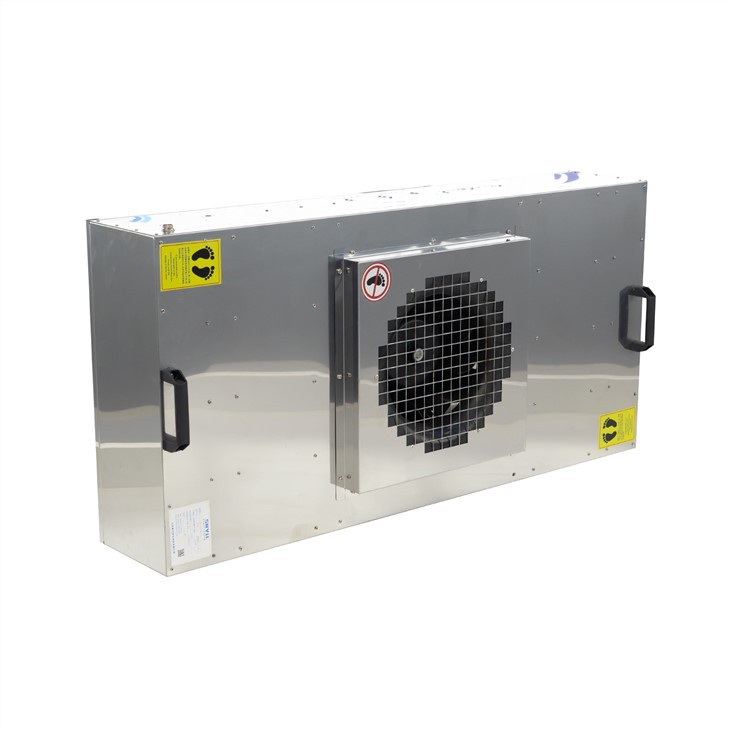

AC FFU
AC FFU ( fan filter unit ) is a self-powered terminal air supply device with filtering function, the fan sucks in air from the top and filters it through the HEPA filter in order to create clean air and evenly send out from the air outlet, it provides stable and strict air environment control for cleanrooms. The fan filter unit can be connected in modules to meet the needs of different enterprises and scientific research for different clean environments.
Product Introduction
Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of ac ffu in China. With abundant experience, we warmly welcome you to wholesale advanced ac ffu from our factory. For price consultation, contact us.
Products Specifications
AC FFU Air chamber material：Galvalume / aluminum / stainless steel
Air Flow (m³/h)：800~1700
Air velocity (m/s)：0.35~0.55
Total pressure (Pa)：175~255
Power (W)：85~235
Noise dB (1m below the HEPA filter)：55~63
Vibration (mm/s)：0.2~0.7
Power supply：220V 1PH 50/60Hz (330V 3PH 50/60Hz 110V 1PH 50/60Hz)
Control mode：3 levels adjustable manually or group control by computer
Options：DOP inject port / DOP sample port / differential pressure drop test port /differential pressure drop alarm device
Products Features
HEPA filter
Efficiency ：99.99% 0.3μm
Frame ：High quality anodized aluminum
Initial pressure drop ：110Pa@0.45m/s±15%
Trait ：PU foam endless gasket
Products Parameter
| project | specification | remarks | |
Module size | 600mmX1200mm | Module size, except for the marked item, may be determined by customer Change the design for different requirements | |
900mmX1200mm | |||
750mmX1500mm | |||
1200mmX1200mm | |||
Main screen | HEPA | MPPS:≥99.95%(H13) | DOP:≥99.99%@0.3μm |
MPPS:≥99.995%(H14) | DOP:≥99.999%@0.3μm | ||
ULPA | MPPS:≥99.9995%(U15) | DOP:≥99.9995%@0.1~0.2μm | |
MPPS:≥99.99995%(U16) | DOP:≥99.99995%@0.1~0.2μm | ||
MPPS:≥99.999995%(U17) | DOP:≥99.999995%@0.1~0.2μm | ||
Power supply | Standard type | AC 1Ph,200~240,50/60Hz | If you have any other special power requirements, please contact us |
Optional accessories | Differential pressure gauge (or interface), air inlet filter, air inlet nozzle EBM fan, industrial all-in-one, outlet surface diffuser, power line, chemical filter | ||
Products Advantage
AC FFU consists of high performance fan,motor, professionally designed housing and HEPA/ULPA filter.
Low noise,low power consumption,small vibration,strong intensity,maintenance free.
Uniform air speed,stable operation
Products Application
AC FFU are primarily used in critical environments requiring clean air solutions.These include cleanrooms, biological laboratory,pharmaceutical compounding, semiconductor and microelectronic manufacturing, and healthcare facilities.

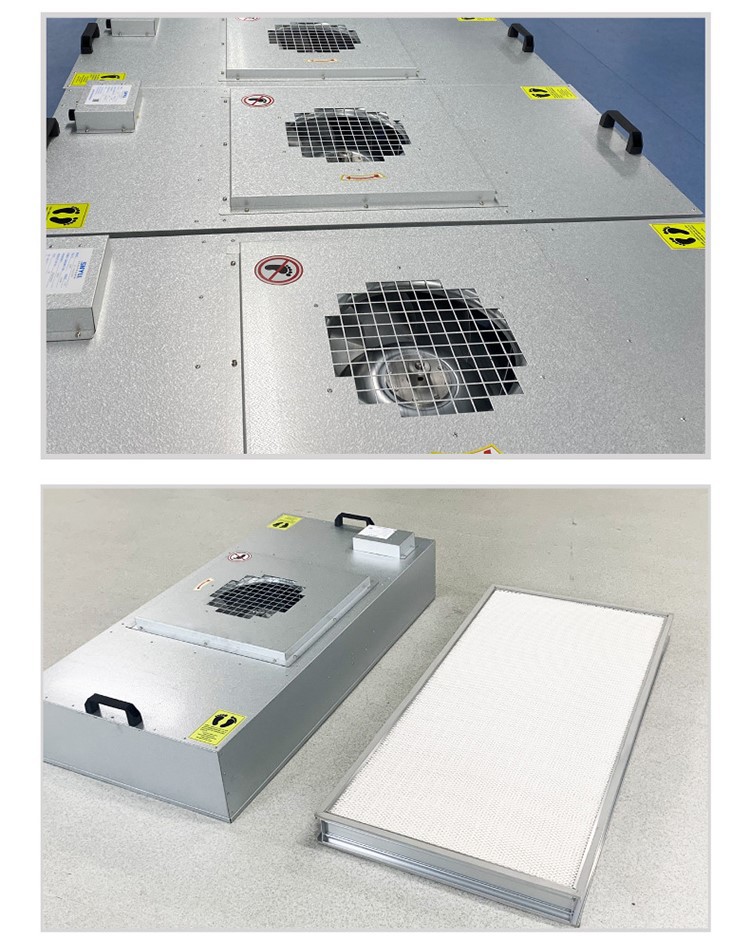

Products Photos
