Pocket Bag Filters

Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of pocket bag filters in China. With abundant experience, we warmly welcome you to wholesale advanced pocket bag filters from our factory. For price consultation, contact us.



Pocket Bag Filters are considered to be the best medium-efficiency filter structures at present.
Pocket filters are used as first or second stage filters in air conditioning systems and centralized air supply systems. If the air environment is not strict, pocket filters are used as final filters, the air processed by pocket filers can be supplied to people directly. That is why pocket filters should be replaced frequently.

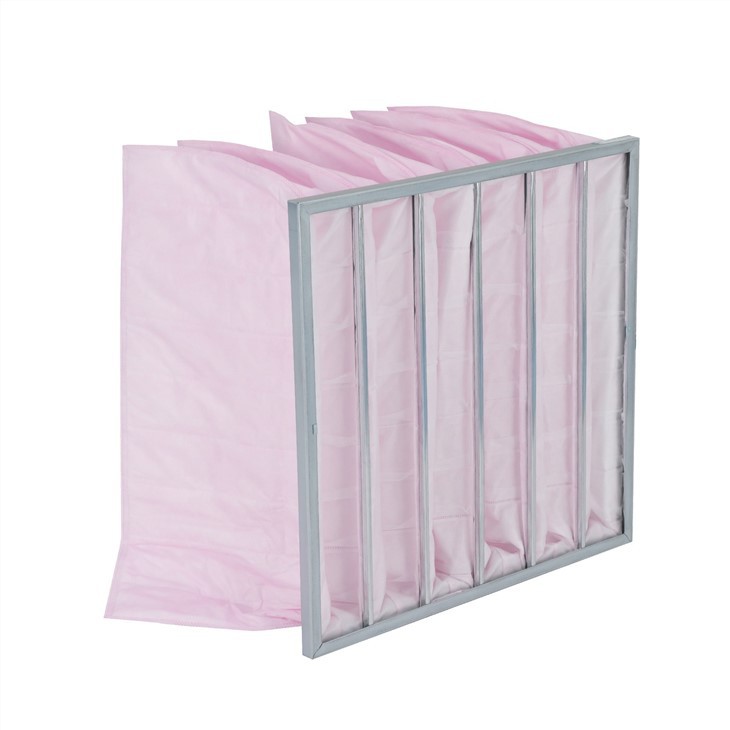

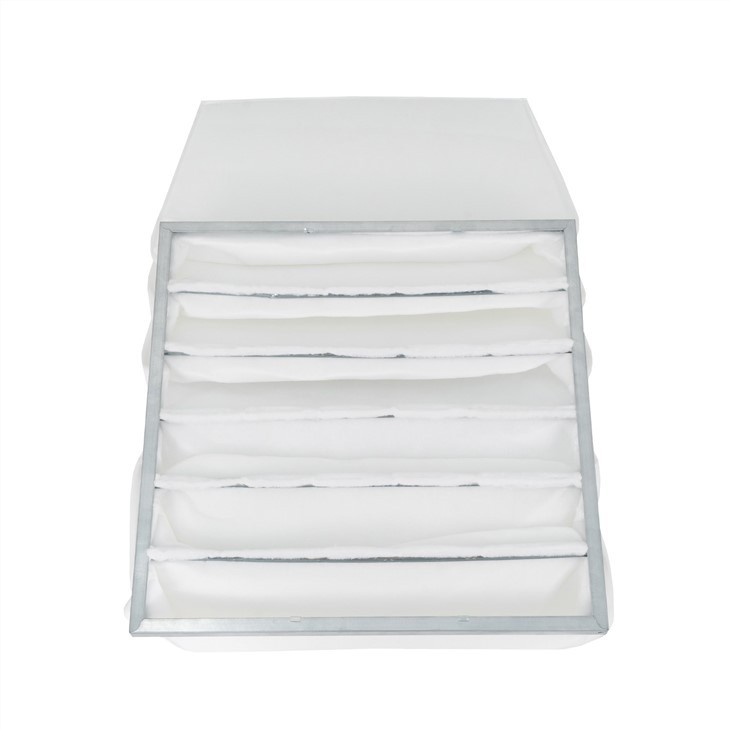

Pocket filters consist of synthetic bags and frame, the synthetic bags are embedded into a sturdy metal frame make the pocket filters won't shake and break.

The synthetic bags are made from ultrafine fiber and organic synthetic fiber available from efficiencies from45% to 98% (F5 – F9) depending on the application.

The frames are including a galvanized steel frame and aluminum alloy frame. The galvanized steel frame is the most common construction for pocket filters, it is cheaper and stronger than aluminum alloy frame when installing and applying.

Filter material: ultrafine fiber and organic synthetic fiber

Frame material: galvanized steel or aluminum alloy

Filter classes: F5, F6,F7,F8,F9

Filter color:orange,green,pink,yellow,white

Efficiency:  45 – 98 %.

Model	Actual size W×H×D(mm)	Pocket Qty	Air flow (m³/h)	Initial P.D.(Pa)
				G3	G4	F5	F6	F7	F8	F9
CG3D-17T-3A	287×592×381	3	1700	52	61	68	82	135	165	210
CG3D-28T-5A	490×592×381	5	2850	52	61	68	82	135	165	210
CG3D-34T-6A	592×592×381	6	3400	52	61	68	82	135	165	210
CG3D-17T-4A	287×592×381	4	1700	49	57	63	75	126	150	192
CG3D-34T-8A	592×592×381	8	3400	49	57	63	75	126	150	192
ZF5D-17T-3B	287×592×533	3	1700	44	52	58	70	115	140	179
ZF5D-28T-5B	490×592×533	5	2850	44	52	58	70	115	140	179
ZF5D-34T-6B	592×592×533	6	3400	44	52	58	70	115	140	179
ZF5D-17T-4B	287×592×533	4	1700	41	48	53	63	106	126	161
ZF5D-34T-8B	592×592×533	8	3400	41	48	53	63	106	126	161
ZF8D-17T-3C	287×592×762	3	1700	33	39	44	52	86	118	150
ZF8D-28T-5C	490×592×762	5	2850	33	39	44	52	86	118	150
ZF8D-34T-6C	592×592×762	6	3400	33	39	44	52	86	118	150
ZF8D-17T-4C	287×592×762	4	1700	31	36	40	48	81	106	135
ZF8D-34T-8C	592×592×762	8	3400	31	36	40	48	81	106	135

metalworking and woodworking,cement production industry,food industry,public buildings,painting, varnishing,medical facilities,chemical industry

swimming pools, sports centers.

F8 bag filter It is used in the AC syetem such as industrial engineering , comerce  , hospital , school ,building and other factory , also can be installed at the air-inlet equipment of gas turbine or cumputer room , in order to prolong life-length of the equipments .

Can design and customize products with small batch orders according to the customer's drawings.

Propose the best solution according to the customer's product, and adopt the best production plan to reduce costs.

We have many years of production experience, if there is a conflict between product design and actual production, we can propose the best. modification to meet the actual use of the product.

First-class product quality and perfect after-sales service.

Factory Outlet.

FedEx/DHL/UPS/TNT for samples, Door-to-Door;

By Air or by Sea for batch goods; Airport/ Port receiving;

Customers specifying freight forwarders or negotiable shipping methods;

Delivery Time: 1-3 days for samples; Generally 7-10 days for batch goods,also depends on the specific quanlity.
