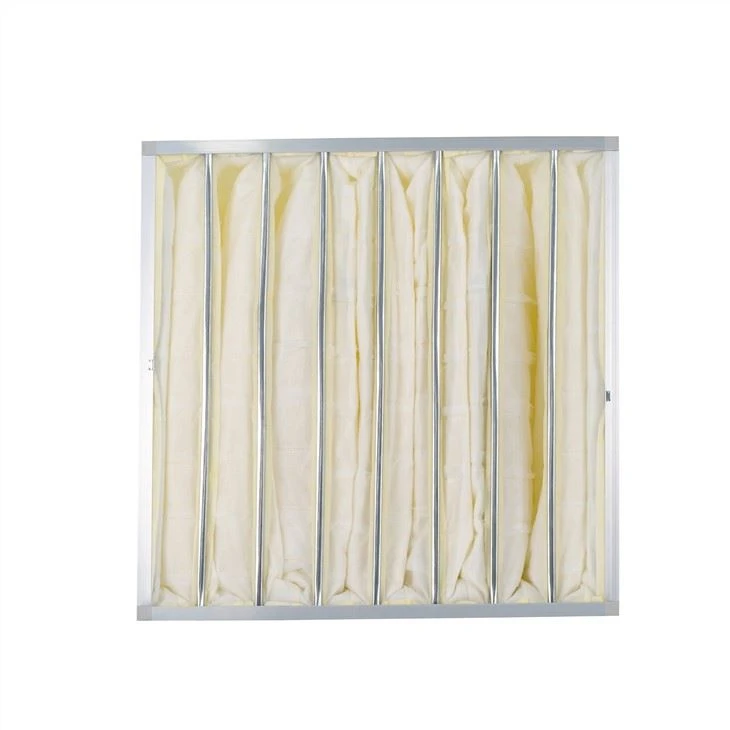

G3 G4 Bag Washable Filter
Bag washable filters are usually used as secondary or final filters, after pleating the filter.
Product Introduction
Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of g3 g4 bag washable filter in China. With abundant experience, we warmly welcome you to wholesale advanced g3 g4 bag washable filter from our factory. For price consultation, contact us.
Products Specifications
Frame:Galvanized steel /Aluminium alloy /Stainless steel
Media: Snythetic fiber
Design:Pocket type
Std. EN779: 2012: G3-F9
Maximum temperature: 93℃
Maximum relative humidity: 100%
Customized size: Available
Products Parameter
Model | Actual size W×H×D(mm) | Pocket Qty | Air flow (m³/h) | Initial P.D.(Pa) | ||||||
| G3 | G4 | F5 | F6 | F7 | F8 | F9 | ||||
CG3D-17T-3A | 287×592×381 | 3 | 1700 | 52 | 61 | 68 | 82 | 135 | 165 | 210 |
CG3D-28T-5A | 490×592×381 | 5 | 2850 | 52 | 61 | 68 | 82 | 135 | 165 | 210 |
CG3D-34T-6A | 592×592×381 | 6 | 3400 | 52 | 61 | 68 | 82 | 135 | 165 | 210 |
CG3D-17T-4A | 287×592×381 | 4 | 1700 | 49 | 57 | 63 | 75 | 126 | 150 | 192 |
CG3D-34T-8A | 592×592×381 | 8 | 3400 | 49 | 57 | 63 | 75 | 126 | 150 | 192 |
ZF5D-17T-3B | 287×592×533 | 3 | 1700 | 44 | 52 | 58 | 70 | 115 | 140 | 179 |
ZF5D-28T-5B | 490×592×533 | 5 | 2850 | 44 | 52 | 58 | 70 | 115 | 140 | 179 |
ZF5D-34T-6B | 592×592×533 | 6 | 3400 | 44 | 52 | 58 | 70 | 115 | 140 | 179 |
ZF5D-17T-4B | 287×592×533 | 4 | 1700 | 41 | 48 | 53 | 63 | 106 | 126 | 161 |
ZF5D-34T-8B | 592×592×533 | 8 | 3400 | 41 | 48 | 53 | 63 | 106 | 126 | 161 |
ZF8D-17T-3C | 287×592×762 | 3 | 1700 | 33 | 39 | 44 | 52 | 86 | 118 | 150 |
ZF8D-28T-5C | 490×592×762 | 5 | 2850 | 33 | 39 | 44 | 52 | 86 | 118 | 150 |
ZF8D-34T-6C | 592×592×762 | 6 | 3400 | 33 | 39 | 44 | 52 | 86 | 118 | 150 |
ZF8D-17T-4C | 287×592×762 | 4 | 1700 | 31 | 36 | 40 | 48 | 81 | 106 | 135 |
ZF8D-34T-8C | 592×592×762 | 8 | 3400 | 31 | 36 | 40 | 48 | 81 | 106 | 135 |
Products Application
Bag washable filters are usually used as secondary or final filters, after pleating the filter.
Often installed in HVAC systems in auto shops, data centers, food and beverage plants, industrial sites, and schools.
Products Advantage
Some advantages for bag washable filter:
Uniform pocket shape permits maximum air flow, minimum resistance
High strength mechanical staking secures pockets to prevent separation under high turbulent conditions Preferred option for fly ash
Simple to operate
