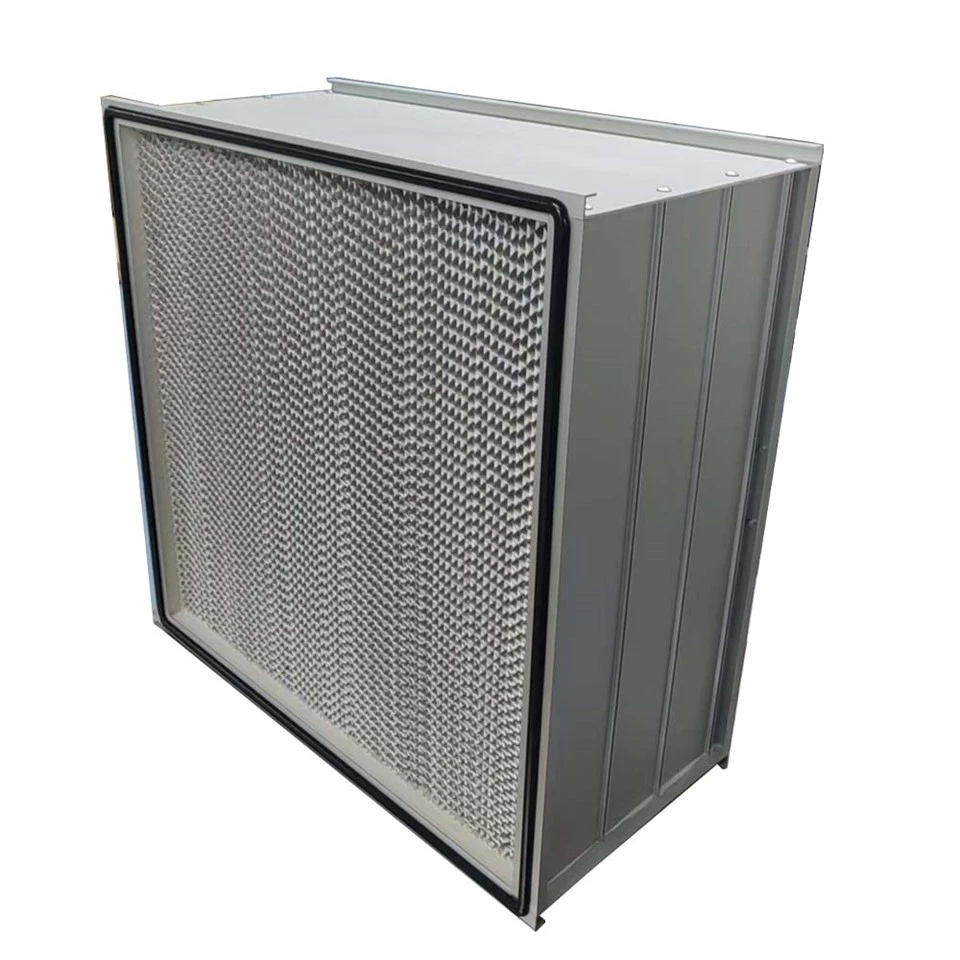

610×610×292mm (24''×24''×12'') Extruded Aluminum Frame HEPA Filter
The 610×610×292mm (24''×24''×12'') Extruded Aluminum Frame HEPA Filter is a high-efficiency air filtration solution designed for HVAC systems, cleanrooms, hospitals, laboratories, pharmaceutical facilities, and other critical environments.
Featuring a durable extruded aluminum frame, high-quality fiberglass filter media, deep pleated design, and reliable PU gasket sealing, this HEPA filter provides efficient particle removal while maintaining stable airflow. With a rated airflow of up to 3400 m³/h and an initial resistance of 285 Pa, it offers dependable filtration performance for demanding applications.
Product Introduction
Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of 610×610×292mm (24''×24''×12'') extruded aluminum frame hepa filter in China. With abundant experience, we warmly welcome you to wholesale advanced 610×610×292mm (24''×24''×12'') extruded aluminum frame hepa filter from our factory. For price consultation, contact us.
Product Description
The 610×610×292mm (24''×24''×12'') Extruded Aluminum Frame HEPA Filter is designed for high-efficiency air filtration in HVAC systems, cleanrooms, hospitals, laboratories, pharmaceutical facilities, electronics manufacturing, and other controlled environments.
Featuring a rigid extruded aluminum frame, deep-pleated fiberglass media, and a PU perimeter gasket, this HEPA filter provides a durable structure, effective filtration area, and reliable sealing. The standard 610 x 610 x 292 mm size, equivalent to 24 x 24 x 12 inches, is suitable for compatible terminal filtration systems and air handling equipment.
Customized sizes, filtration grades, gasket configurations, and other specifications are available for OEM and project requirements.
| Item | Specification |
|---|---|
| Product Type | HEPA Air Filter |
| Nominal Size | 610 × 610 × 292 mm |
| Inch Size | 24 × 24 × 12 in |
| Filter Media | Fiberglass |
| Frame Material | Extruded Aluminum |
| Sealing | PU Gasket |
| Rated Airflow | 3400 m³/h |
| Initial Resistance | Approx. 285 Pa |
| Final Resistance | Approx. 650 Pa |
| Installation | Terminal Air Filtration / Compatible HVAC Systems |
| Customization | Available |
Performance may vary according to filter efficiency, airflow conditions, system design, and other application parameters.
Product Advantages
- Extruded Aluminum Frame for Structural Stability
The aluminum profile frame provides a rigid structure for handling, transportation, and installation. Compared with lightweight disposable frames, an extruded aluminum construction is well suited to applications where dimensional stability and durable filter construction are important.
- Deep-Pleated Fiberglass Filter Media
The deep-pleated fiberglass media creates an expanded filtration surface within the standard filter dimensions.
A larger effective media area allows the filter to accommodate substantial airflow while maintaining the required filtration performance. The design is suitable for air handling and terminal filtration systems where both filtration efficiency and airflow capacity need to be considered.
- Continuous PU Gasket for Better Sealing
The filter perimeter is equipped with a PU gasket designed to form a secure interface with the filter housing.
Effective sealing is an important part of HEPA filtration because a high-efficiency filter can lose system-level performance if untreated air bypasses the filter around its frame.
The gasket configuration can be adapted for different installation requirements.
- Standard 24×24×12 Inch Filter Size
The 610 × 610 × 292 mm format corresponds to the widely recognized 24 × 24 × 12 inch filter size.
This standard configuration makes it a practical choice for compatible HVAC equipment, air handling units, terminal filter housings, and replacement applications.
For projects using non-standard equipment, customized dimensions can be discussed with SNYLI's technical team.
- Customized HEPA Filter Solutions
Not every air filtration system uses the same housing, airflow, or installation method. For this reason, SNYLI supports customized HEPA filter configurations for OEM customers, engineering projects, and replacement programs.
Depending on project requirements, customization may include:
- Filter dimensions and overall depth
- HEPA filtration efficiency
- Aluminum frame configuration
- Gasket material and sealing arrangement
- Airflow requirements
- Product labeling and packaging for OEM projects
Send us your requirements, we will give you a solution.
Application Fields
The 610×610×292mm (24''×24''×12'') Extruded Aluminum Frame HEPA Filter can be integrated into cleanroom HVAC systems, pharmaceutical production areas, hospitals, laboratories, electronics manufacturing facilities, food processing environments, and other applications requiring high-efficiency air filtration.
It can serve as a terminal HEPA filter in compatible air handling and air purification systems. Actual filter selection should consider airflow, filtration efficiency, pressure drop, installation space, and system requirements.
About SNYLI
SNYLI is an air filtration manufacturer providing HEPA, ULPA, primary and secondary filters, chemical filtration products, FFUs, and cleanroom air purification equipment.
With capabilities covering product development, manufacturing, testing, and OEM customization, SNYLI supports customers across commercial, industrial, and controlled-environment applications. Its quality management and filter testing processes are designed to help maintain consistent product performance.
For customers sourcing the 610×610×292mm (24''×24''×12'') Extruded Aluminum Frame HEPA Filter, SNYLI can provide standard configurations as well as customized solutions based on dimensions, efficiency, airflow, frame, gasket, and installation requirements.
Frequently Asked Questions
Q1: What are the dimensions of a 24×24×12 HEPA filter?
The nominal dimensions of this filter are 610 × 610 × 292 mm, equivalent to approximately 24 × 24 × 12 inches.
Q2: What filter media is used in this HEPA filter?
The standard configuration uses fiberglass filter media combined with an extruded aluminum frame and PU perimeter gasket.
Q3: Where can a 24x24x12 HEPA filter be used?
A 24x24x12 HEPA filter can be used in compatible HVAC systems, air handling units, cleanrooms, laboratories, pharmaceutical facilities, healthcare environments, electronics manufacturing, and other applications requiring high-efficiency particle filtration.
Q4: Can SNYLI customize HEPA filter sizes?
Yes. SNYLI supports customized filter configurations for OEM and project applications. Customers can discuss dimensions, efficiency grades, frame construction, gasket arrangements, airflow requirements, and other technical specifications with the SNYLI team.
Need a reliable HEPA filtration solution?
Contact SNYLI today for a quote and customized filter options.
