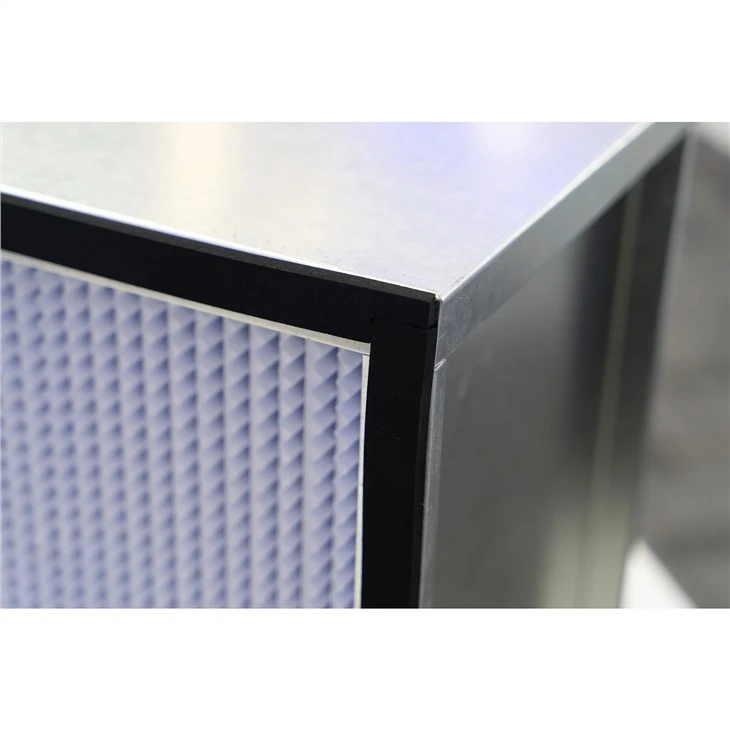

Deep Pleated With Separator Air Filter
Deep Pleated With Separator Air Filter offers a traditional construction approach solution to the need for low replacement cost HEPA Filtration. And they are always designed with the highest levels of fine air filtration and air quality, up to H14 to EN1822.
Product Introduction
Snyli Environmental Technology (Shandong) Co., Ltd. is one of the most reliable manufacturers and suppliers of deep pleated with separator air filter in China. With abundant experience, we warmly welcome you to wholesale advanced deep pleated with separator air filter from our factory. For price consultation, contact us.
Products Description
Deep Pleated With Separator Air Filter is appropriate for use in situations requiring turbulent HEPA filtration. The fully eradicable timber version makes it ideally suited for applications like bacteriological, toxicological, and hospital settings where this method of wasted filter disposal is anticipated.
The product is created utilizing corrugated aluminum safety edged separators and premium micro-glass paper. An enlarged media surface area is created by bonding the filter pack to the filter. The product's outside casing, which is made of either galvanized steel, SS or aluminum, improves its physical stability. On the filter's clean air side, the finished product is equipped with a continuous elastomer sealing gasket. Each cell is tested once production is complete to ensure peak performance.
Products Features
Frame Material: SS/Galvanized Steel/Aluminum
Separator: aluminum or paper
Filtration Efficiency: 95 –99. 995 %;
Filter Media: Glass Fiber Media / Polyester Media
Maximum operating temperature: 80℃
Maximum operating humidity: 100%
Technical Data
|
Model |
Size W×H×D（mm） |
Rated air flow(m³/h) |
Initial Pressure(Pa) |
Final Pressure(Pa) |
|
|
Standard |
High airflow |
||||
|
H4BX5-150T5-ZB0 |
320×320×150 |
340 |
540 |
220/333 |
500/660 |
|
H4PT1-150T5-ZB0 |
484×484×150 |
800 |
1260 |
||
|
H4BX2-150T5-ZB0 |
630×630×150 |
1400 |
2200 |
||
|
H4PT13-150T5-ZB0 |
915×610×150 |
2080 |
3300 |
||
|
H4BX5-220T5-ZB0 |
320×320×220 |
400 |
630 |
||
|
H4PT1-220T5-ZB0 |
484×484×220 |
1000 |
1580 |
||
|
H4BX2-220T5-ZB0 |
630×630×220 |
1700 |
2700 |
||
|
H4BX14-220T5-ZB0 |
945×630×220 |
2600 |
4100 |
||
|
H4PT10-290T5-ZB0 |
305×610×290 |
1050 |
1700 |
||
|
H4BX8-290T5-ZB0 |
610×610×290 |
2100 |
3400 |
||
Products Characteristic
◆Increased airflow without an increase in resistance.
◆Longer longevity at typical air flow rates, lower resistance, and lower energy costs.
◆Longer service lives result in lower disposal costs and less waste sent to landfills.
◆Cut down on the amount of space needed for the filter bank.
Products Application
The highest levels of air filtration are necessary for numerous crucial applications in high technology production, science, and healthcare. Deep Pleated With Separator Air Filter For applications like as clean rooms, hospital operating rooms, biological containment laboratories, laminar flow clean benches and safety cabinets, food processing factories, and research labs, HEPA filters are constructed to the strictest requirements.
